Vtični-L fiting Metallice vrt., R 1/2, cev Ø 12
SKU: 108919RIE
EAN: 4047322391115

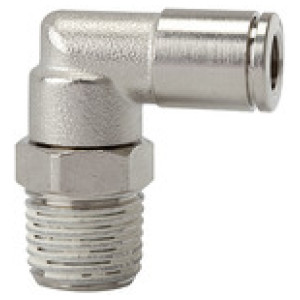

Push-in L-fitting »metallica«, rotating, R 1/2 o., for hose exterior Ø 12, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
14,01 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108910RIE | R 1/8 | 6 | 13 | 20.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,06 € |  | |
| 108912RIE | R 1/4 | 4 | 14 | 25.0 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,28 € | | |
| 108914RIE | R 1/4 | 8 | 14 | 25.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,60 € | | |
| 108917RIE | R 3/8 | 10 | 18 | 30.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,64 € | | |
| 108911RIE | R 1/8 | 8 | 13 | 20.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,06 € | | |
| 108909RIE | R 1/8 | 4 | 13 | 20.0 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,87 € | | |
| 137011RIE | R 1/2 | 14 | 22 | 35.5 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,65 € | | |
| 108916RIE | R 3/8 | 8 | 18 | 28.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,71 € | | |
| 108915RIE | R 1/4 | 10 | 16 | 26.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,80 € | | |
| 137010RIE | R 3/8 | 14 | 20 | 32.5 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,69 € | | |
| 108918RIE | R 3/8 | 12 | 20 | 32.5 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,19 € | | |
| 108913RIE | R 1/4 | 6 | 14 | 25.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,42 € | | |
| 108919RIE | R 1/2 | 12 | 22 | 35.5 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,01 € | |
Opis
Push-in L-fitting »metallica«, rotating, R 1/2 o., for hose exterior Ø 12, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Male elbow, swivel type, conical male thread, coated |
| Navoj | R 1/2 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 29.0 |
| L2 [mm] | 35.5 |
| a/f [mm] | 22 |
| Material | Nickel-plated brass |
