Vtični-L fiting Metallice vrt., G 1/2 , cev Ø 14
SKU: 137009RIE
EAN: 4047322509930

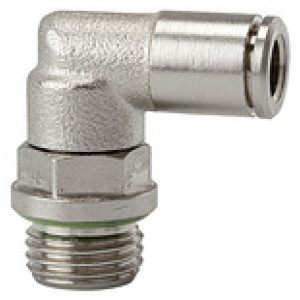

Push-in L-fitting »metallica«, rotating, G 1/2 o., for hose exterior Ø 14, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Čas dobave: Predvidoma 3 - 5 dni
11,74 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108898RIE | G 1/8 | 8 | 13 | 20.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,43 € |  | |
| 108907RIE | G 1/2 | 10 | 16 | 30.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,07 € | | |
| 108903RIE | G 1/4 | 12 | 16 | 30.5 | 29.0 | Na zalogi | 10,87 € | | |
| 108902RIE | G 1/4 | 10 | 16 | 24.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,66 € | | |
| 108895RIE | M5 | 6 | 9 | 14.5 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,73 € | | |
| 108900RIE | G 1/4 | 6 | 13 | 24.0 | 21.0 | Na zalogi | 5,59 € | | |
| 108899RIE | G 1/4 | 4 | 13 | 24.0 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,38 € | | |
| 137009RIE | G 1/2 | 14 | 20 | 35.0 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,74 € | | |
| 108894RIE | M5 | 4 | 9 | 14.5 | 18.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,38 € | | |
| 136777RIE | G 3/8 | 16 | 20 | 33.0 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 42,86 € | | |
| 108908RIE | G 1/2 | 12 | 20 | 35.0 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,30 € | | |
| 136778RIE | G 1/2 | 16 | 20 | 38.0 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 44,79 € | | |
| 136776RIE | G 1/8 | 10 | 13 | 23.5 | 26.5 | Čas dobave: Predvidoma 3 - 5 dni | 9,56 € | | |
| 108897RIE | G 1/8 | 6 | 13 | 20.0 | 21.0 | Na zalogi | 5,39 € | | |
| 108901RIE | G 1/4 | 8 | 13 | 24.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,67 € | | |
| 108906RIE | G 3/8 | 12 | 20 | 28.5 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,30 € | | |
| 108905RIE | G 3/8 | 10 | 16 | 28.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,27 € | | |
| 108904RIE | G 3/8 | 8 | 13 | 25.5 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,83 € | | |
| 108896RIE | G 1/8 | 4 | 13 | 20.0 | 20.0 | Na zalogi | 5,15 € | | |
| 137008RIE | G 3/8 | 14 | 20 | 28.5 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,11 € | |
Opis
Push-in L-fitting »metallica«, rotating, G 1/2 o., for hose exterior Ø 14, Working pressure -0.98 to 16 bar, nickel-plated brass
"All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion
Tehnični podatki in specifikacije
| Serija | metallica |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Priporočena cev | PA and PU |
| Rokav | Nickel-plated brass |
| Vpenjalni obroč | Male elbow, swivel type, parallel male thread with O-ring (FPM) |
| Navoj | G 1/2 |
| Za cevi O.D. [mm] | 14 |
| L1 [mm] | 32.0 |
| L2 [mm] | 35.0 |
| a/f [mm] | 20 |
| Material | Nickel-plated brass |
