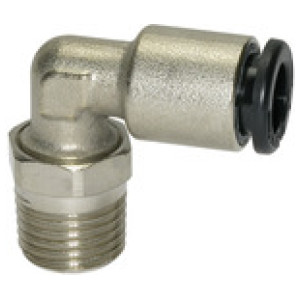

Vtični-L fiting »Click-klak«, vrtljivi, R 1/2 o.
SKU: 108623RIE
EAN: 4047322208468
Push-in L-fitting »click-clock«, rotating, R 1/2 o., hose exterior Ø 12, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
9,85 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108615RIE | R 1/8 | 8 | 12 | 19.8 | 25.4 | Čas dobave: Predvidoma 3 - 5 dni | 4,72 € |  | |
| 108613RIE | R 1/8 | 4 | 12 | 19.8 | 18.6 | Čas dobave: Predvidoma 3 - 5 dni | 4,90 € | | |
| 108620RIE | R 3/8 | 8 | 17 | 27.1 | 23.6 | Čas dobave: Predvidoma 3 - 5 dni | 7,22 € | | |
| 108623RIE | R 1/2 | 12 | 22 | 31.9 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,85 € | | |
| 108614RIE | R 1/8 | 6 | 12 | 19.8 | 21.9 | Čas dobave: Predvidoma 3 - 5 dni | 5,06 € | | |
| 108621RIE | R 3/8 | 10 | 17 | 27.1 | 27.2 | Čas dobave: Predvidoma 3 - 5 dni | 8,11 € | | |
| 108622RIE | R 3/8 | 12 | 17 | 27.1 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,41 € | | |
| 108616RIE | R 1/4 | 4 | 14 | 22.6 | 18.6 | Čas dobave: Predvidoma 3 - 5 dni | 5,51 € | | |
| 108617RIE | R 1/4 | 6 | 14 | 22.6 | 21.9 | Čas dobave: Predvidoma 3 - 5 dni | 5,59 € | | |
| 108618RIE | R 1/4 | 8 | 14 | 23.6 | 25.4 | Čas dobave: Predvidoma 3 - 5 dni | 5,14 € | | |
| 108619RIE | R 1/4 | 10 | 14 | 26.3 | 27.2 | Čas dobave: Predvidoma 3 - 5 dni | 7,66 € | |
Opis
Push-in L-fitting »click-clock«, rotating, R 1/2 o., hose exterior Ø 12, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | R 1/2 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 30.0 |
| L2 [mm] | 31.9 |
| a/f [mm] | 22 |
| Material | Nickel-plated brass |
