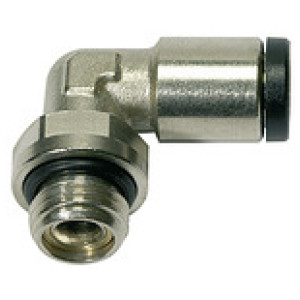

Vtični-L fiting »Click-klak«, vrtljivi, G 1/8 o.
SKU: 108598RIE
EAN: 4047322292054
Push-in L-fitting »click-clock«, rotating, G 1/8 o., for hose exterior Ø 5, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
4,73 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108608RIE | G 3/8 | 10 | 17 | 27.1 | 27.2 | Čas dobave: Predvidoma 3 - 5 dni | 7,44 € |  | |
| 108605RIE | G 1/4 | 10 | 14 | 24.8 | 27.2 | Čas dobave: Predvidoma 3 - 5 dni | 6,88 € | | |
| 108595RIE | M5 | 5 | 9 | 15.3 | 22.8 | Čas dobave: Predvidoma 3 - 5 dni | 4,32 € | | |
| 108601RIE | G 1/4 | 4 | 14 | 21.1 | 18.6 | Čas dobave: Predvidoma 3 - 5 dni | 4,98 € | | |
| 108607RIE | G 3/8 | 8 | 17 | 27.1 | 23.6 | Čas dobave: Predvidoma 3 - 5 dni | 6,12 € | | |
| 108612RIE | G 1/2 | 14 | 22 | 32.3 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,28 € | | |
| 108604RIE | G 1/4 | 8 | 14 | 21.1 | 25.4 | Čas dobave: Predvidoma 3 - 5 dni | 5,09 € | | |
| 108596RIE | M5 | 6 | 9 | 15.3 | 21.9 | Čas dobave: Predvidoma 3 - 5 dni | 5,29 € | | |
| 108611RIE | G 1/2 | 12 | 22 | 30.7 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,87 € | | |
| 108594RIE | M5 | 4 | 9 | 15.3 | 18.6 | Čas dobave: Predvidoma 3 - 5 dni | 4,88 € | | |
| 108599RIE | G 1/8 | 6 | 12 | 19.1 | 21.9 | Čas dobave: Predvidoma 3 - 5 dni | 4,42 € | | |
| 108602RIE | G 1/4 | 5 | 14 | 21.8 | 22.8 | Čas dobave: Predvidoma 3 - 5 dni | 4,73 € | | |
| 108609RIE | G 3/8 | 12 | 17 | 27.1 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,60 € | | |
| 108606RIE | G 1/4 | 12 | 14 | 25.6 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,24 € | | |
| 108597RIE | G 1/8 | 4 | 12 | 19.1 | 18.6 | Čas dobave: Predvidoma 3 - 5 dni | 4,25 € | | |
| 108610RIE | G 1/2 | 10 | 22 | 30.7 | 27.2 | Čas dobave: Predvidoma 3 - 5 dni | 10,63 € | | |
| 108598RIE | G 1/8 | 5 | 12 | 19.1 | 22.8 | Čas dobave: Predvidoma 3 - 5 dni | 4,73 € | | |
| 108603RIE | G 1/4 | 6 | 14 | 21.1 | 21.9 | Čas dobave: Predvidoma 3 - 5 dni | 4,81 € | | |
| 108600RIE | G 1/8 | 8 | 12 | 19.1 | 25.4 | Čas dobave: Predvidoma 3 - 5 dni | 4,88 € | |
Opis
Push-in L-fitting »click-clock«, rotating, G 1/8 o., for hose exterior Ø 5, Working pressure -0.99 to 16 bar, nickel-plated brass
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Navoj | G 1/8 |
| Za cevi O.D. [mm] | 5 |
| L1 [mm] | 22.8 |
| L2 [mm] | 19.1 |
| a/f [mm] | 12 |
| Material | Nickel-plated brass |
