* slike so simbolične

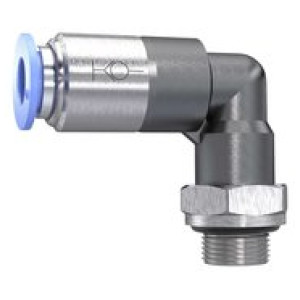

Vtični-L fiting »blue serija«, samozaporni, G 1/2 o.
SKU: 151473RIE
EAN: 4047322593298
Push-in L-fitting »Blue Series«, Self-locking, G 1/2 o., for hose exterior Ø 12 mm, pmax 10 barThe air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Čas dobave: Predvidoma 3 - 5 dni
19,42 €
| Šifra | Navoj | Standardni navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 151464RIE | G 1/8 | DIN EN ISO 228-1 | 6 | 14 | 22.0 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,33 € |  | |
| 151467RIE | G 1/4 | DIN EN ISO 228-1 | 8 | 17 | 25.5 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,77 € | | |
| 151462RIE | M5 | DIN 13-1 | 6 | 12 | 19.5 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,19 € | | |
| 151469RIE | G 3/8 | DIN EN ISO 228-1 | 8 | 20 | 27.5 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,58 € | | |
| 151473RIE | G 1/2 | DIN EN ISO 228-1 | 12 | 24 | 32.5 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,42 € | | |
| 151461RIE | M5 | DIN 13-1 | 4 | 12 | 18.5 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,19 € | | |
| 151466RIE | G 1/4 | DIN EN ISO 228-1 | 6 | 17 | 23.0 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,05 € | | |
| 151465RIE | G 1/8 | DIN EN ISO 228-1 | 8 | 14 | 24.5 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,77 € | | |
| 151468RIE | G 1/4 | DIN EN ISO 228-1 | 10 | 17 | 27.5 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,18 € | | |
| 151472RIE | G 1/2 | DIN EN ISO 228-1 | 10 | 24 | 32.0 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,18 € | | |
| 151471RIE | G 3/8 | DIN EN ISO 228-1 | 12 | 20 | 30.0 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,06 € | | |
| 151463RIE | G 1/8 | DIN EN ISO 228-1 | 4 | 14 | 21.0 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,33 € | | |
| 151470RIE | G 3/8 | DIN EN ISO 228-1 | 10 | 20 | 29.5 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,81 € | |
Opis

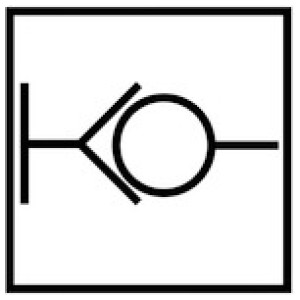

The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Navoj | G 1/2 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 47.0 |
| L2 [mm] | 32.5 |
| a/f [mm] | 24 |
| Standardni navoj | DIN EN ISO 228-1 |
| Material | Plastic and nickel-plated brass |
