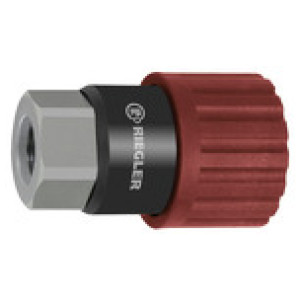

Vrtljiva varnosta spojka z N.N. I.D. 6, ISO 6150 C,G3/8 N.N.
SKU: 141738RIE
EAN: 4047322566612
Swivel safety coupling I.D. 6, ISO 6150 C, Steel, G 3/8 IT, two-stage, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
High quality, robust and long lifetime one-hand rotation secure coupling.
A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch. The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 141736RIE | G 1/8 IT | 22 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,71 € |  | |
| 141738RIE | G 3/8 IT | 22 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,71 € | | |
| 141739RIE | G 1/2 IT | 24 | 62.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,71 € | | |
| 141737RIE | G 1/4 IT | 22 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 33,71 € | |
Opis
Swivel safety coupling I.D. 6, ISO 6150 C, Steel, G 3/8 IT, two-stage, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
High quality, robust and long lifetime one-hand rotation secure coupling.
A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch. The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
Tehnični podatki in specifikacije
| DN | 6 |
| Povezava | G 3/8 IT |
| a/f [mm] | 22 |
| Delovni tlak | max. 25 bar / max. 16 bar when attaching / detaching |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 100 |
| Ohišje | Steel, QPQ treated |
| Tesnilo | NBR |
| Pretok | 630 l/min (air) |
| Vzmet | Stainless steel |
| Rokav | Polyamide, red |
| Navojni kos | Galvanised steel |
| Ventil | Polyphenylene sulfide (PPS) |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Srednje | Compressed air, gases |
| Vtični profil | acc. ISO 6150 C |
| Dolžina [mm] | 60.0 |
