* slike so simbolične
Votla vijak s teflonsko tesnilnim obročem, enojna G 1/8
SKU: 110444RIE
EAN: 4047322387453

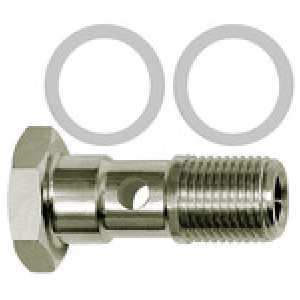

Hollow screw with PTFE sealing ring, Single, G 1/8, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.

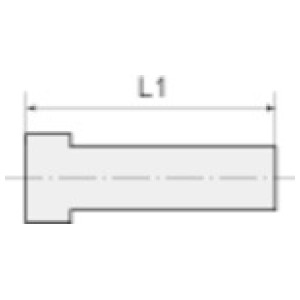

Šifra | Navoj | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
110444RIE | G 1/8 | 14 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,02 € | | |
110447RIE | G 1/2 | 26 | 41.5 | Čas dobave: Predvidoma 3 - 5 dni | 39,67 € | | |
110445RIE | G 1/4 | 17 | 32.5 | Čas dobave: Predvidoma 3 - 5 dni | 16,57 € | | |
110446RIE | G 3/8 | 21 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,80 € | |
Opis
Hollow screw with PTFE sealing ring, Single, G 1/8, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Tehnični podatki in specifikacije
Max. delovni tlak [bar] | 15 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Delovni tlak pulzira [bar] | 10 |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 150 |
Primerni materiali za cevi | PVDF, PTFE, PA, PU |
Navoj | G 1/8 |
L1 [mm] | 29.0 |
a/f [mm] | 14 |
Standardni navoj | DIN EN ISO 228-1 |
Material | Stainless steel 1.4404 |
