* slike so simbolične

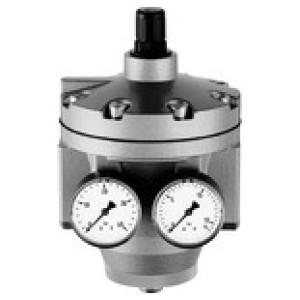

Visoko zmogljiv tlačni regulator, G 1 1/2, 0.5 - 16 bar
SKU: 101262RIE
EAN: 4047322107686
High performance pressure regulator with 2 pressure gauges, G 1 1/2, Control range 0.5 - 16 bar, Input pressure max. 25 bar
Diaphragm pressure regulators, independent of inlet pressure, with internal pilot control and self-relieving design
for very high flow rates.
Separate indication of input and working pressure on two pressure gauges.
The pressure setting can be locked by pushing the knob down.
Obrestno financiranje
- 100 € + 28,54 € x 48 mesecev
- 100 € + 36,48 € x 36 mesecev
- 100 € + 52,40 € x 24 mesecev
- 100 € + 100,31 € x 12 mesecev
- 100 € + 196,22 € x 6 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 101261RIE | G 1 1/2 | 0.5 | 10 | 16 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.072,23 € |  | |
| 101260RIE | G 1 1/2 | 0.2 | 6 | 10 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.072,23 € | | |
| 101264RIE | G 2 | 0.2 | 6 | 10 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.005,76 € | | |
| 101259RIE | G 1 1/2 | 0.1 | 3 | 4 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.072,23 € | | |
| 101266RIE | G 2 | 0.5 | 16 | 25 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.005,76 € | | |
| 101263RIE | G 2 | 0.1 | 3 | 4 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.005,76 € | | |
| 101262RIE | G 1 1/2 | 0.5 | 16 | 25 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.072,23 € | | |
| 101265RIE | G 2 | 0.5 | 10 | 16 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.005,76 € | |
Opis
High performance pressure regulator with 2 pressure gauges, G 1 1/2, Control range 0.5 - 16 bar, Input pressure max. 25 bar
Diaphragm pressure regulators, independent of inlet pressure, with internal pilot control and self-relieving design
for very high flow rates.
Separate indication of input and working pressure on two pressure gauges.
The pressure setting can be locked by pushing the knob down.
Tehnični podatki in specifikacije
| Navoj | G 1 1/2 |
| Max. vhodni tlak [bar] | 25 |
| Ohišje | Aluminium, painted silver |
| Tesnilo | NBR |
| DN | 50 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok | 50000 l/min |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 16 |
| Zaslon manometra max. [bar] | 25 |

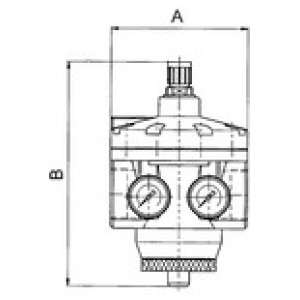

| A [mm] | 188.0 |
| B [mm] | 261.0 |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
