Vgrajeni regulator tlaka za pitno vodo G 1/4, pre-set 7 bar slika
Vgrajeni regulator tlaka za pitno vodo G 1/4, pre-set 7 bar slika

* slike so simbolične

Vgrajeni regulator tlaka za pitno vodo G 1/4, pre-set 7 bar

SKU: 150644RIE
EAN: 4047322588522

Inline pressure regulator for drinking water, without venting, G 1/4, AF 17, Working pressure (pre-set) 7 bar, PN max. 10 bar

This potable water regulator reduces the inlet pressure to a fixed set output pressure, that is factory set and cannot be changed. This makes the regulator secure from manipulation.

Due to the constant output pressure pressure fluctuations in the system are prevented and the down-stream equipment and components of the potable water line are protected.

The pressure regulator complies with the FDA, EU and DIN 50930-6 potable water directives and can be used in the potable water area, in the food industry and in medical technology.

Čas dobave: Predvidoma 3 - 5 dni
73,58 €
ali od 13,55 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 13,55 € x 6 mesecev
  • 26,79 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Pretok [l/min] Delovni tlak (prednastavitev) [bar] Zaloga Cena Nakup Natisni
150642RIE 4 5
Čas dobave: Predvidoma 3 - 5 dni
73,58 € Natisni
150641RIE 4 4
Čas dobave: Predvidoma 3 - 5 dni
73,58 € Natisni
150638RIE 3 1
Čas dobave: Predvidoma 3 - 5 dni
73,58 € Natisni
150639RIE 4 2
Čas dobave: Predvidoma 3 - 5 dni
73,58 € Natisni
150643RIE 4 6
Čas dobave: Predvidoma 3 - 5 dni
73,58 € Natisni
150645RIE 4 8
Čas dobave: Predvidoma 3 - 5 dni
73,58 € Natisni
150640RIE 4 3
Čas dobave: Predvidoma 3 - 5 dni
73,58 € Natisni
150644RIE 4 7
Čas dobave: Predvidoma 3 - 5 dni
73,58 € Natisni

Opis

Inline pressure regulator for drinking water, without venting, G 1/4, AF 17, Working pressure (pre-set) 7 bar, PN max. 10 bar

This potable water regulator reduces the inlet pressure to a fixed set output pressure, that is factory set and cannot be changed. This makes the regulator secure from manipulation.

Due to the constant output pressure pressure fluctuations in the system are prevented and the down-stream equipment and components of the potable water line are protected.

The pressure regulator complies with the FDA, EU and DIN 50930-6 potable water directives and can be used in the potable water area, in the food industry and in medical technology.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. obratovalni tlak [bar] 10
Min. temperaturno območje [°C] 4
Max. temperaturno območje [°C] 60
Ohišje GV-5 FWA
Tesnilo FPM
Pretok [l/min] 4
Delovni tlak (prednastavitev) [bar] 7
Notranji deli Stainless steel DIN 1.4404 / AISI 316L

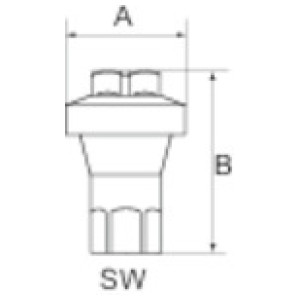

A [mm] 34.0
B [mm] 52.0
Serija inline
Merjenje pretoka At P1 = 10 bar and pressure drop Δp = 0.8 bar
a/f [mm] 17
