* slike so simbolične

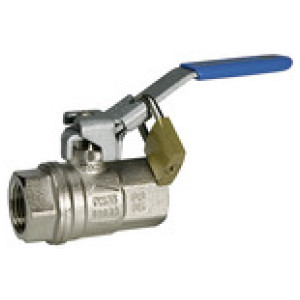

Varnostni krogelni ventil, z zaklepom, brez izpustom, Rp 1 1/4
SKU: 103146RIE
EAN: 4047322246903
Safety ball valve, lockable, without venting hole, nickel-plated brass, Operating temp. max. 170 °C, Rp 1 1/4, PN max. 40 bar
2/2-way safety ball valves made of nickel-plated brass.
The ball valve can be locked manually.
Full bore, heavy-duty type.
Čas dobave: Predvidoma 3 - 5 dni
83,40 €
ali od 15,19 € / mesec
Izračunaj obrok
Obrestno financiranje
- 15,19 € x 6 mesecev
- 30,05 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

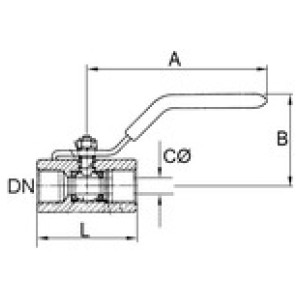

| Šifra | Navoj | PN [bar] | DN | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103148RIE | Rp 2 | 40 | 50 | 92.0 | 135.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 165,32 € |  | |
| 103147RIE | Rp 1 1/2 | 40 | 40 | 85.0 | 117.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 114,07 € | | |
| 103146RIE | Rp 1 1/4 | 40 | 32 | 78.0 | 104.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 83,40 € | | |
| 103144RIE | Rp 3/4 | 65 | 20 | 52.5 | 74.5 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 41,78 € | | |
| 103145RIE | Rp 1 | 65 | 25 | 57.0 | 90.5 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 62,77 € | | |
| 103142RIE | Rp 3/8 | 65 | 10 | 39.5 | 51.0 | 82.0 | Čas dobave: Predvidoma 3 - 5 dni | 23,53 € | | |
| 103143RIE | Rp 1/2 | 65 | 15 | 43.0 | 61.0 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,01 € | | |
| 103141RIE | Rp 1/4 | 65 | 8 | 39.5 | 51.0 | 82.0 | Čas dobave: Predvidoma 3 - 5 dni | 23,53 € | |
Opis
Safety ball valve, lockable, without venting hole, nickel-plated brass, Operating temp. max. 170 °C, Rp 1 1/4, PN max. 40 bar
2/2-way safety ball valves made of nickel-plated brass.
The ball valve can be locked manually.
Full bore, heavy-duty type.
Tehnični podatki in specifikacije
| Material | Nickel-plated brass |
| Bore diameter padlock | ca. 7.4 mm |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 170 |
| Krogelno tesnilo | PTFE |
| Stebelno tesnilo | PTFE |
| Ročica | Steel - PVC coated |
| Material navojev | Nickel-plated brass |
| Navoj | Rp 1 1/4 |
| Standardni navoj | Rp thread acc. to EN 10226 |
| DN | 32 |
| A [mm] | 158.0 |
| L [mm] | 104.0 |
| B [mm] | 78.0 |
| PN [bar] | 40 |
