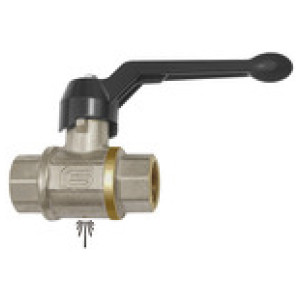

Varnostni krogelni ventil brez zaklepa, z izpustom, Rp 1/2
SKU: 103255RIE
EAN: 4047322076401
Safety ball valve, not lockable, with venting hole, nickel-plated brass, Operating temp. max. 60°C, Rp 1/2, DN 15, PN max. 12 bar
Brass safety ball valves.
Specially designed for pneumatic applications.
The ball valve shuts off the supply side and relieves the application into the atmosphere.
Čas dobave: Predvidoma 3 - 5 dni
31,38 €

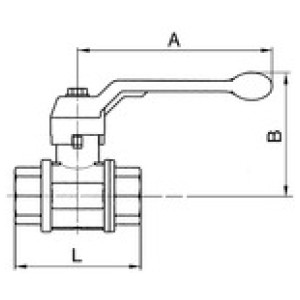

| Šifra | Navoj | DN | L [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 103253RIE | Rp 1/4 | 8 | 52.0 | 61.0 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 29,51 € |  | |
| 103256RIE | Rp 3/4 | 20 | 77.0 | 76.0 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 49,81 € | | |
| 103255RIE | Rp 1/2 | 15 | 69.0 | 64.0 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 31,38 € | | |
| 103259RIE | Rp 1 1/2 | 40 | 114.0 | 104.0 | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | 140,20 € | | |
| 103260RIE | Rp 2 | 50 | 134.0 | 119.0 | 175.0 | Čas dobave: Predvidoma 3 - 5 dni | 215,21 € | | |
| 103258RIE | Rp 1 1/4 | 32 | 103.0 | 98.0 | 150.0 | Čas dobave: Predvidoma 3 - 5 dni | 101,31 € | | |
| 103254RIE | Rp 3/8 | 10 | 55.0 | 61.0 | 100.0 | Čas dobave: Predvidoma 3 - 5 dni | 29,51 € | | |
| 103257RIE | Rp 1 | 25 | 89.0 | 80.0 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 62,21 € | |
Opis
Safety ball valve, not lockable, with venting hole, nickel-plated brass, Operating temp. max. 60°C, Rp 1/2, DN 15, PN max. 12 bar
Brass safety ball valves.
Specially designed for pneumatic applications.
The ball valve shuts off the supply side and relieves the application into the atmosphere.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 12 |
| Max. delovna temperatura [°C] | 60 |
| Krogla | Nickel-plated brass |
| Ohišje | Nickel-plated brass |
| Ročica | Die-cast aluminium, black |
| Škatla za polnjenje | Nickel-plated brass |
| Steblo | Nickel-plated brass |
| Tesnilo | PTFE |
| Material navojev | Brass with a bare metal surface |
| Navoj | Rp 1/2 |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| DN | 15 |
| A [mm] | 100.0 |
| L [mm] | 69.0 |
| B [mm] | 64.0 |
