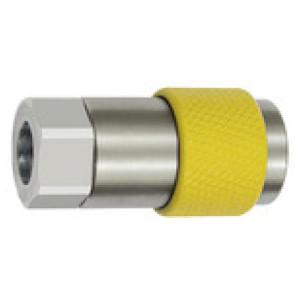

Varnostna vrtljiva spojka I.D.6, ISO 6150 C,G1/2 N.N.,rumena
SKU: 141861RIE
EAN: 4047322564960
Captive swivel safety coupling I.D. 6, ISO 6150 C, Steel, 2-stage, G 1/2 IT, yellow, max. 25 bar, Temp. -15 °C to 200 °C
High quality, robust and long lifetime one-hand rotation secure coupling.
A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch.
The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve. The colour and shape coding of the coupling and plug-in nipple makes it possible only to couple to the same colours.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
Obrestno financiranje
- 10,44 € x 6 mesecev
- 20,64 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Barva | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 141861RIE | Yellow | G 1/2 IT | 24 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € |  | |
| 141886RIE | Blue | G 3/8 IT | 22 | 65.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141873RIE | Gray | G 3/8 IT | 22 | 65.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141860RIE | Yellow | G 3/8 IT | 22 | 65.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141872RIE | Gray | G 1/4 IT | 22 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141887RIE | Blue | G 1/2 IT | 24 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141885RIE | Blue | G 1/4 IT | 22 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141847RIE | Red | G 3/8 IT | 22 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141874RIE | Gray | G 1/2 IT | 24 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141846RIE | Red | G 1/4 IT | 22 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141848RIE | Red | G 1/2 IT | 24 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | | |
| 141859RIE | Yellow | G 1/4 IT | 22 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,93 € | |
Opis
Captive swivel safety coupling I.D. 6, ISO 6150 C, Steel, 2-stage, G 1/2 IT, yellow, max. 25 bar, Temp. -15 °C to 200 °C
High quality, robust and long lifetime one-hand rotation secure coupling.
A secure connection is made by pushing in the plug-in nipple that clicks in audibly. Uncoupling is done by rotating the sleeve anti-clockwise. For this, the pending pressure in the coupling and line are vented, however the plug-in nipple is not completely released via a safety latch.
The plug-in nipple can only be pulled out after a clockwise rotation of the sleeve. The colour and shape coding of the coupling and plug-in nipple makes it possible only to couple to the same colours.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
Tehnični podatki in specifikacije
| DN | 6 |
| Povezava | G 1/2 IT |
| Barva | Yellow |
| a/f [mm] | 24 |
| Dolžina [mm] | 67.0 |
| Delovni tlak | max. 25 bar / max. 16 bar when attaching / detaching |
| Min. temperaturno območje [°C] | -15 |
| Max. temperaturno območje [°C] | 200 |
| Ohišje | Steel, QPQ treated |
| Tesnilo | FKM |
| Pretok | 630 l/min (air) |
| Vzmet | Stainless steel |
| Rokav | Galvanised steel, painted colored |
| Navojni kos | Galvanised steel |
| Ventil | Polyphenylene sulfide (PPS) |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Vtični profil | acc. ISO 6150 C |
