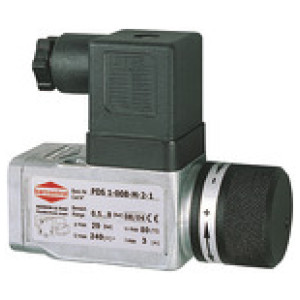

Tlačno stikalo za vakuum, prirobnica, razpon -0.85/-0,15 bar
SKU: 103036RIE
EAN: 4047322126465
Vacuum pressure switch, Electrical connection equipment plug A type, Temp. -20 °C to 80 °C, Flange, Setting range -0.85/-0.15 bar
For converting pneumatic to electrical signals.

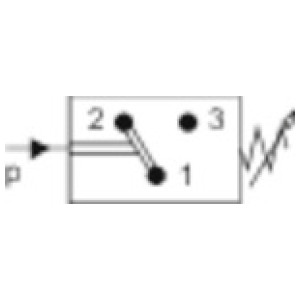

Designed for use in rough vacuum applications (technical vacuum). Universal switch type, suitable as NC, NO or changeover contact. These devices are free from paint-wetting impairment substances (PWIS).
Obrestno financiranje
- 17,39 € x 6 mesecev
- 34,40 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 103037RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 95,05 € |  | |
| 103036RIE | Flange | Čas dobave: Predvidoma 3 - 5 dni | 95,05 € | |
Opis
Vacuum pressure switch, Electrical connection equipment plug A type, Temp. -20 °C to 80 °C, Flange, Setting range -0.85/-0.15 bar
For converting pneumatic to electrical signals.
Designed for use in rough vacuum applications (technical vacuum). Universal switch type, suitable as NC, NO or changeover contact. These devices are free from paint-wetting impairment substances (PWIS).
Tehnični podatki in specifikacije
| Ohišje | Special die-cast material |
| Preklopna napetost | max. 250 V AC / 28 V DC |
| Povezava | Flange |
| Membrane | NBR |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |

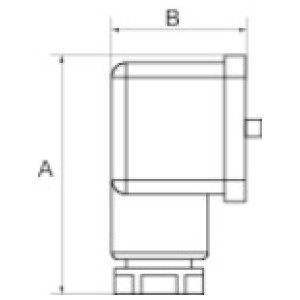

| A [mm] | 48.0 |
| B [mm] | 28.0 |
| IP zaščita | IP 65 (DIN 43650), IP 67 (M12x1) |
| Aplikacije | Pneumatic applications |
| Preklopna frekvenca | 1Hz |
| Območje nastavitve | -0.85 / -0.15 bar |
