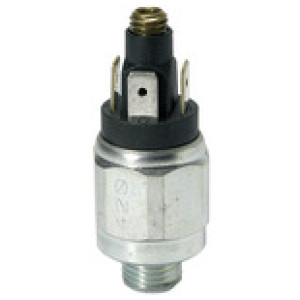

Tlačno stikalo z zamenljivim kontaktom, G 1/4, 10 - 70 bar
SKU: 103014RIE
EAN: 4047322126304
Pressure switch changeover contact design, galvanised steel, 42 V, Ambient temp. -25 °C to 85 °C, G 1/4, Setting range 10 - 70 bar
For liquid, non-corrosive and gaseous media. Easy to adjust, even under pressure.
Can be integrated in any mounting position. Pressure adjustment by means of a hexagon-head screw.
Obrestno financiranje
- 11,71 € x 6 mesecev
- 23,17 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Vrsta gradnje | Min. prilagoditveno območje [bar] | Max. območje nastavitve [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 103012RIE | Spring-loaded diaphragm (NBR) | 0.5 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 63,53 € |  | |
| 103013RIE | Spring-loaded diaphragm (NBR) | 1 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 63,53 € | | |
| 103014RIE | Spring-loaded piston | 10 | 70 | Čas dobave: Predvidoma 3 - 5 dni | 63,53 € | |
Opis
Pressure switch changeover contact design, galvanised steel, 42 V, Ambient temp. -25 °C to 85 °C, G 1/4, Setting range 10 - 70 bar
For liquid, non-corrosive and gaseous media. Easy to adjust, even under pressure.
Can be integrated in any mounting position. Pressure adjustment by means of a hexagon-head screw.
Tehnični podatki in specifikacije
| Preklopna napetost | 42 V |
| Min. prilagoditveno območje [bar] | 10 |
| Max. območje nastavitve [bar] | 70 |
| Aplikacije | Air, hydraulic oil, oil emulsions, water |
| Preklopna frekvenca | 200/min |
| Material | Galvanised steel |
| Navoj | G 1/4 |
| Ffunkcija | changeover contact |
| Vrsta gradnje | Spring-loaded piston |
| Max. sobna temperatura [°C] | 85 |
| Min. sobna temperatura [°C] | -25 |
| Električni priključek | Tab connectors 3 x 6.3 x 0.8 |
