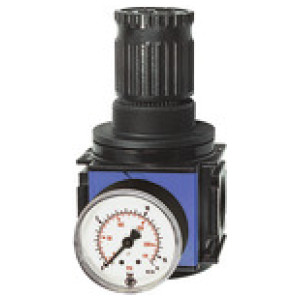

Tlačni regulator »variobloc«, Velikost 2, G 1/2, 0.5 - 16 bar
SKU: 100642RIE
EAN: 4047322169424
Pressure regulator »variobloc«, incl. pressure gauge, Size 2, G 1/2, Input pressure max. 25 bar, Control range 0.5 - 16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the knob down.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Obrestno financiranje
- 17,57 € x 6 mesecev
- 34,75 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Velikost | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100646RIE | G 1 | 2 | 6 | 6 | 33.0 | 125.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 146,29 € |  | |
| 100638RIE | G 3/8 | 1 | 10 | 10 | 26.0 | 48.0 | 98.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 65,50 € | | |
| 100641RIE | G 1/2 | 2 | 10 | 10 | 33.0 | 70.0 | 134.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | 96,38 € | | |
| 100636RIE | G 1/4 | 1 | 16 | 16 | 26.0 | 48.0 | 98.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 65,50 € | | |
| 100639RIE | G 3/8 | 1 | 16 | 16 | 26.0 | 48.0 | 98.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 65,50 € | | |
| 100634RIE | G 1/4 | 1 | 6 | 6 | 26.0 | 48.0 | 98.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 65,50 € | | |
| 100645RIE | G 3/4 | 2 | 16 | 16 | 33.0 | 70.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 96,38 € | | |
| 100643RIE | G 3/4 | 2 | 6 | 6 | 33.0 | 70.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 96,38 € | | |
| 100644RIE | G 3/4 | 2 | 10 | 10 | 33.0 | 70.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 96,38 € | | |
| 100637RIE | G 3/8 | 1 | 6 | 6 | 26.0 | 48.0 | 98.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 65,50 € | | |
| 100647RIE | G 1 | 2 | 10 | 10 | 33.0 | 125.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 146,29 € | | |
| 100640RIE | G 1/2 | 2 | 6 | 6 | 33.0 | 70.0 | 134.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | 96,38 € | | |
| 100648RIE | G 1 | 2 | 16 | 16 | 33.0 | 125.0 | 134.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 146,29 € | | |
| 100642RIE | G 1/2 | 2 | 16 | 16 | 33.0 | 70.0 | 134.0 | 7000 | Čas dobave: Predvidoma 3 - 5 dni | 96,38 € | | |
| 100635RIE | G 1/4 | 1 | 10 | 10 | 26.0 | 48.0 | 98.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 65,50 € | |
Opis
Pressure regulator »variobloc«, incl. pressure gauge, Size 2, G 1/2, Input pressure max. 25 bar, Control range 0.5 - 16 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the knob down.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 25 |
| Velikost | 2 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Vzmet pokrova motorja | POM |
| Pretok [l/min] | 7000 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 16 |
| Zaslon manometra max. [bar] | 16 |

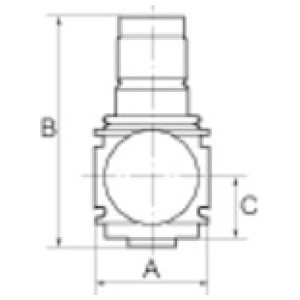

| A [mm] | 70.0 |
| B [mm] | 134.0 |
| C [mm] | 33.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
