* slike so simbolične
Tlačni regulator »Stinard-mali«, Velikost 0, G 1/8, 0.5 - 10 bar
SKU: 100765RIE
EAN: 4047322092166

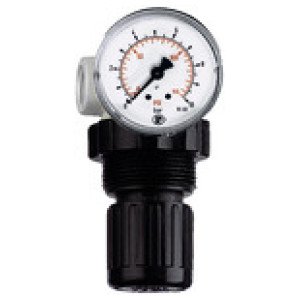

Pressure regulator »Standard-mini« incl. pressure gauge, Size 0, G 1/8, Input pressure max. 25 bar, Control range 0.5 - 10 bar
Reversible diaphragm pressure regulators with self-relieving design in compact design.
The pressure setting can be locked by pushing the knob down.
Čas dobave: Predvidoma 3 - 5 dni
32,02 €
| Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 100766RIE | G 1/4 | 0.1 | 3.5 | 4 | Čas dobave: Predvidoma 3 - 5 dni | 32,02 € |  | |
| 100767RIE | G 1/4 | 0.15 | 7 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 32,02 € | | |
| 100763RIE | G 1/8 | 0.1 | 3.5 | 4 | Čas dobave: Predvidoma 3 - 5 dni | 32,02 € | | |
| 100764RIE | G 1/8 | 0.15 | 7 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 32,02 € | | |
| 100768RIE | G 1/4 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 32,02 € | | |
| 100765RIE | G 1/8 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 32,02 € | |
Opis
Pressure regulator »Standard-mini« incl. pressure gauge, Size 0, G 1/8, Input pressure max. 25 bar, Control range 0.5 - 10 bar
Reversible diaphragm pressure regulators with self-relieving design in compact design.
The pressure setting can be locked by pushing the knob down.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 25 |
| Ohišje | Die-cast zinc, painted silver |
| Tesnilo | NBR/TPU |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Pretok [l/min] | 340 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| DN | 5 |

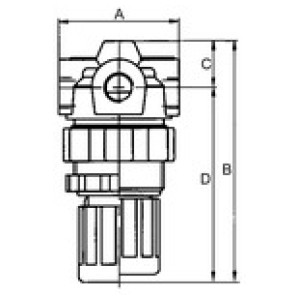

| A [mm] | 43.0 |
| B [mm] | 72.5 |
| C [mm] | 9.5 |
| D [mm] | 63.0 |
| Serija | Standard-mini |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
