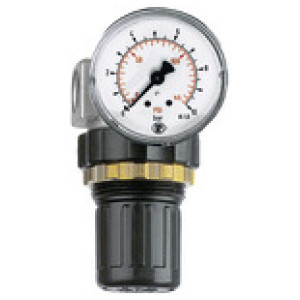

Tlačni regulator »Stinard-mali«, G 1/8, 0.5 - 10 bar
SKU: 100774RIE
EAN: 4047322092753
Pressure regulator »Standard-mini«, incl. pressure gauge and control panel nut, G 1/8, Input pressure max. 25 bar, 0.5 - 10 bar
Compact, reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the knob down.
Čas dobave: Predvidoma 3 - 5 dni
49,03 €
| Šifra | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 100774RIE | G 1/8 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 49,03 € |  | |
| 100778RIE | G 1/4 | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 49,03 € | | |
| 100772RIE | G 1/8 | 0.1 | 3 | 4 | Čas dobave: Predvidoma 3 - 5 dni | 49,03 € | | |
| 100775RIE | G 1/8 | 0.5 | 16 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 49,03 € | | |
| 100773RIE | G 1/8 | 0.2 | 6 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 49,03 € | | |
| 100776RIE | G 1/4 | 0.1 | 3 | 4 | Čas dobave: Predvidoma 3 - 5 dni | 49,03 € | | |
| 100779RIE | G 1/4 | 0.5 | 16 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 49,03 € | | |
| 100777RIE | G 1/4 | 0.2 | 6 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 49,03 € | |
Opis
Pressure regulator »Standard-mini«, incl. pressure gauge and control panel nut, G 1/8, Input pressure max. 25 bar, 0.5 - 10 bar
Compact, reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the knob down.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 25 |
| Ohišje | Die-cast zinc, painted silver |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Pretok [l/min] | 330 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| DN | 5 |

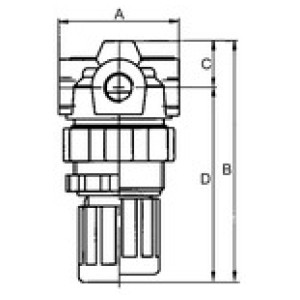

| A [mm] | 40.0 |
| B [mm] | 76.3 |
| C [mm] | 15.0 |
| D [mm] | 61.3 |
| Serija | Standard-mini |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
