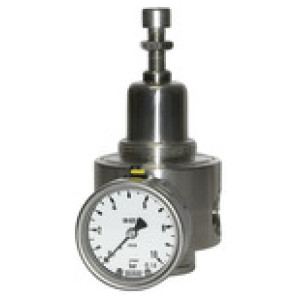

Tlačni regulator iz nerjevečega jekla, 1.4404, G 1/2, 1 - 15 bar
SKU: 101194RIE
EAN: 4047322101769
Stainless steel pressure regulator, 1.4404, with secondary venting (reversible), G 1/2, Control range 1 - 15 bar
Stainless steel regulators containing no non-ferrous metals for use in the food processing, chemical, mining,
plant construction and special machinery industries as well as in the medical technology.
Obrestno financiranje
- 23,59 € x 48 mesecev
- 30,15 € x 36 mesecev
- 43,31 € x 24 mesecev
- 82,91 € x 12 mesecev
- 162,18 € x 6 mesecev
- 320,76 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Membrane | Merjenje pretoka | Navoj | Min. krmilno območje [bar] | Max. krmilno območje [bar] | C [mm] | Max. vhodni tlak [bar] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 129270RIE | PTFE on NBR carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p ? 1 bar | G 1/2 | 0.5 | 8 | 39.0 | 50 | 109.0 | 121.0 | 160.0 | 2800 | Ni na zalogi | ? | Povpraševanje |  |
| 129271RIE | PTFE on NBR carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p ? 1 bar | G 1/2 | 1 | 15 | 39.0 | 50 | 109.0 | 121.0 | 160.0 | 2800 | Ni na zalogi | ? | Povpraševanje | |
| 101193RIE | PTFE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/2 | 0.5 | 8 | 37.0 | 30 | 80.0 | 127.0 | 164.0 | 660 | Čas dobave: Predvidoma 3 - 5 dni | 885,61 € | | |
| 101194RIE | PTFE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/2 | 1 | 15 | 37.0 | 50 | 80.0 | 127.0 | 164.0 | 1800 | Čas dobave: Predvidoma 3 - 5 dni | 885,61 € | | |
| 101192RIE | PTFE on NBR carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/4 | 1 | 15 | 37.0 | 50 | 64.0 | 122.0 | 160.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | 585,21 € | | |
| 101191RIE | PTFE on NBR carrier | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar | G 1/4 | 0.5 | 8 | 37.0 | 30 | 64.0 | 122.0 | 160.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | 585,21 € | |
Opis
Stainless steel pressure regulator, 1.4404, with secondary venting (reversible), G 1/2, Control range 1 - 15 bar
Stainless steel regulators containing no non-ferrous metals for use in the food processing, chemical, mining,
plant construction and special machinery industries as well as in the medical technology.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 50 |
| Ohišje | Stainless steel 1.4404 (AISI 316L) |
| Tesnilo | FKM |
| Membrane | PTFE |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 1800 |
| Min. krmilno območje [bar] | 1 |
| Max. krmilno območje [bar] | 15 |

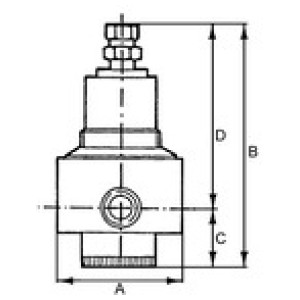

| A [mm] | 80.0 |
| B [mm] | 164.0 |
| C [mm] | 37.0 |
| D [mm] | 127.0 |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar |
