* slike so simbolične

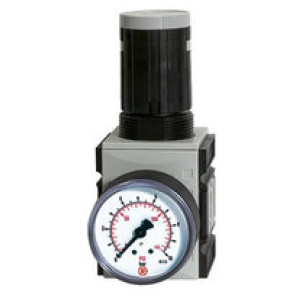

Tlačni regulator »FUTURA«, Velikost 1, G 1/4, 0.2 - 4 bar
SKU: 100054RIE
EAN: 4047322190855
Pressure regulator, continuous pressure supply »FUTURA«, incl. press. gauge, Size 1, G 1/4, Input pressure max. 16 bar, 0.2-4 bar
Diaphragm pressure regulators with self-relieving design and excellent flow rates
in modern design for mounting side by side.

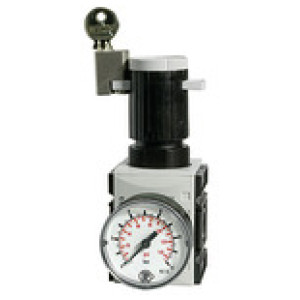

By assembling two or more controllers together, it is possible to supply several working air circuits with different output pressures via a single supply line. The regulator button can be latched and locked.
Obrestno financiranje
- 10,80 € x 6 mesecev
- 21,36 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100072RIE | G 1/2 | 0.2 | 2 | 4 | 6 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € |  | |
| 100064RIE | G 3/8 | 0.1 | 2 | 1 | 1.6 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100073RIE | G 1/2 | 0.5 | 2 | 8 | 10 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100052RIE | G 1/4 | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 129.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100069RIE | G 3/8 | 0.5 | 2 | 16 | 25 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100068RIE | G 3/8 | 0.5 | 2 | 10 | 16 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100057RIE | G 1/4 | 0.5 | 1 | 16 | 25 | 52.0 | 96.0 | 129.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 114589RIE | G 1/4 | 0.5 | 1 | 10 | 16 | 52.0 | 96.0 | 129.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 57,40 € | | |
| 100061RIE | G 3/8 | 0.5 | 1 | 8 | 10 | 52.0 | 96.0 | 129.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100059RIE | G 3/8 | 0.1 | 1 | 2 | 2.5 | 52.0 | 96.0 | 129.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100070RIE | G 1/2 | 0.1 | 2 | 1 | 1.6 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100067RIE | G 3/8 | 0.5 | 2 | 8 | 10 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100054RIE | G 1/4 | 0.2 | 1 | 4 | 6 | 52.0 | 96.0 | 129.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100055RIE | G 1/4 | 0.5 | 1 | 8 | 10 | 52.0 | 96.0 | 129.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100063RIE | G 3/8 | 0.5 | 1 | 16 | 25 | 52.0 | 96.0 | 129.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100060RIE | G 3/8 | 0.2 | 1 | 4 | 6 | 52.0 | 96.0 | 129.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100053RIE | G 1/4 | 0.1 | 1 | 2 | 2.5 | 52.0 | 96.0 | 129.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100065RIE | G 3/8 | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100062RIE | G 3/8 | 0.5 | 1 | 10 | 16 | 52.0 | 96.0 | 129.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100071RIE | G 1/2 | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100066RIE | G 3/8 | 0.2 | 2 | 4 | 6 | 63.0 | 110.0 | 150.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100075RIE | G 1/2 | 0.5 | 2 | 16 | 25 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | | |
| 100058RIE | G 3/8 | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 129.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 58,50 € | | |
| 100074RIE | G 1/2 | 0.5 | 2 | 10 | 16 | 63.0 | 110.0 | 150.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 90,04 € | |
Opis
Pressure regulator, continuous pressure supply »FUTURA«, incl. press. gauge, Size 1, G 1/4, Input pressure max. 16 bar, 0.2-4 bar
Diaphragm pressure regulators with self-relieving design and excellent flow rates
in modern design for mounting side by side.
By assembling two or more controllers together, it is possible to supply several working air circuits with different output pressures via a single supply line. The regulator button can be latched and locked.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Pretok [l/min] | 2000 |
| Min. krmilno območje [bar] | 0.2 |
| Max. krmilno območje [bar] | 4 |
| Zaslon manometra max. [bar] | 6 |

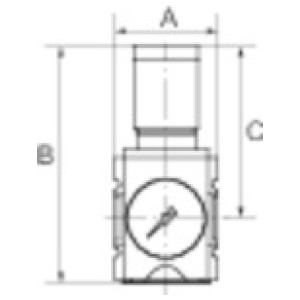

| A [mm] | 52.0 |
| B [mm] | 129.0 |
| C [mm] | 96.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
