* slike so simbolične

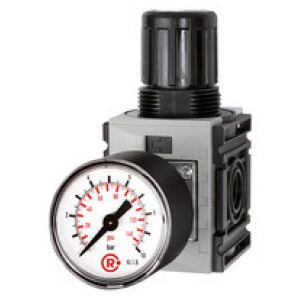

Tlačni regulator »FUTURA-mali«, Stinard manometer, G 1/4
SKU: 142397RIE
EAN: 4047322555630
Pressure regulator »FUTURA-mini«, incl. standard pressure gauge, Size 0, G 1/4, Input pressure max. 12 bar, 0.5 - 8 bar
Diaphragm pressure regulators with self-relieving design and with excellent flow rates in modern design.
The regulator knob can be latched.
Šifra | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
142396RIE | 0.1 | 4 | 6 | Čas dobave: Predvidoma 3 - 5 dni | 48,25 € | | |
142397RIE | 0.5 | 8 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 48,25 € | | |
142398RIE | 0.5 | 10 | 16 | Čas dobave: Predvidoma 3 - 5 dni | 48,25 € | |
Opis
Pressure regulator »FUTURA-mini«, incl. standard pressure gauge, Size 0, G 1/4, Input pressure max. 12 bar, 0.5 - 8 bar
Diaphragm pressure regulators with self-relieving design and with excellent flow rates in modern design.
The regulator knob can be latched.
Tehnični podatki in specifikacije
Navoj | G 1/4 |
Max. vhodni tlak [bar] | 12 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 50 |
Ohišje | PA66 GF60 |
Priključni navoj | Plastic |
Tesnilo | NBR |
Membrane | NBR |
Pretok [l/min] | 1000 |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 8 |
Zaslon manometra max. [bar] | 10 |

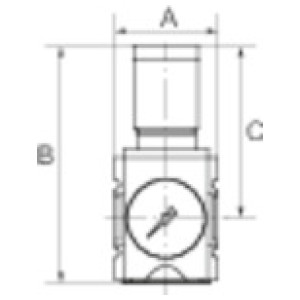

A [mm] | 43.0 |
B [mm] | 88.0 |
C [mm] | 63.0 |
Serija | FUTURA-mini |
Srednje | Compressed air, neutral gases |
Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
