Tlačni reg. za panelno montažo »Stinard«Vel. 1, G3/8, 0.5-6
SKU: 100854RIE
EAN: 4047322108447

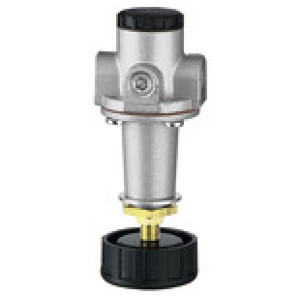

Pressure regulator for control panel integration »Standard«, without pressure gauge, Size 1, G 3/8, max. 16 bar, 0.5 - 6 bar
Incl. panel nut and washer.
Reversible diaphragm pressure regulators, independent of inlet pressure,
with self-relieving design.
Čas dobave: Predvidoma 3 - 5 dni
49,98 €
| Šifra | Navoj | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | DN | Max. vhodni tlak [bar] | C [mm] | A [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100862RIE | G 3/4 | 0.5 | 3 | 6 | 20 | 25 | 31.0 | 90.0 | 132.4 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 197,43 € |  | |
| 100857RIE | G 1/2 | 0.1 | 2 | 3 | 15 | 25 | 34.0 | 70.0 | 111.9 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 80,14 € | | |
| 100851RIE | G 1/4 | 0.5 | 1 | 10 | 6 | 16 | 32.0 | 54.0 | 97.5 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 49,98 € | | |
| 100864RIE | G 3/4 | 0.5 | 3 | 16 | 20 | 25 | 31.0 | 90.0 | 132.4 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 197,43 € | | |
| 100855RIE | G 3/8 | 0.5 | 1 | 10 | 6 | 16 | 32.0 | 54.0 | 97.5 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 49,98 € | | |
| 100856RIE | G 3/8 | 0.5 | 1 | 16 | 6 | 16 | 32.0 | 54.0 | 97.5 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 49,98 € | | |
| 100850RIE | G 1/4 | 0.5 | 1 | 6 | 6 | 16 | 32.0 | 54.0 | 97.5 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 49,98 € | | |
| 100849RIE | G 1/4 | 0.5 | 1 | 3 | 6 | 16 | 32.0 | 54.0 | 97.5 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 49,98 € | | |
| 100854RIE | G 3/8 | 0.5 | 1 | 6 | 6 | 16 | 32.0 | 54.0 | 97.5 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 49,98 € | | |
| 100868RIE | G 1 | 0.5 | 3 | 16 | 25 | 25 | 31.0 | 90.0 | 132.4 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 197,43 € | | |
| 100861RIE | G 3/4 | 0.1 | 3 | 3 | 20 | 25 | 31.0 | 90.0 | 132.4 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 197,43 € | | |
| 100858RIE | G 1/2 | 0.5 | 2 | 6 | 15 | 25 | 34.0 | 70.0 | 111.9 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 80,14 € | | |
| 100863RIE | G 3/4 | 0.5 | 3 | 10 | 20 | 25 | 31.0 | 90.0 | 132.4 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 197,43 € | | |
| 100867RIE | G 1 | 0.5 | 3 | 10 | 25 | 25 | 31.0 | 90.0 | 132.4 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 197,43 € | | |
| 100859RIE | G 1/2 | 0.5 | 2 | 10 | 15 | 25 | 34.0 | 70.0 | 111.9 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 80,14 € | | |
| 100860RIE | G 1/2 | 0.5 | 2 | 16 | 15 | 25 | 34.0 | 70.0 | 111.9 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 80,14 € | | |
| 100852RIE | G 1/4 | 0.5 | 1 | 16 | 6 | 16 | 32.0 | 54.0 | 97.5 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 49,98 € | | |
| 100853RIE | G 3/8 | 0.5 | 1 | 3 | 6 | 16 | 32.0 | 54.0 | 97.5 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 49,98 € | | |
| 100865RIE | G 1 | 0.1 | 3 | 3 | 25 | 25 | 31.0 | 90.0 | 132.4 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 197,43 € | | |
| 100866RIE | G 1 | 0.5 | 3 | 6 | 25 | 25 | 31.0 | 90.0 | 132.4 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 197,43 € | |
Opis
Pressure regulator for control panel integration »Standard«, without pressure gauge, Size 1, G 3/8, max. 16 bar, 0.5 - 6 bar
Incl. panel nut and washer.
Reversible diaphragm pressure regulators, independent of inlet pressure,
with self-relieving design.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Ohišje | Die-cast zinc, painted silver |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 1000 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 6 |
| DN | 6 |

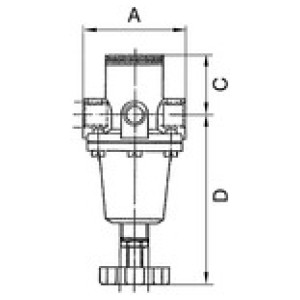

| A [mm] | 54.0 |
| C [mm] | 32.0 |
| D [mm] | 97.5 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
| Navoj za pritrditev plošče | M20x1.5 |
