Tlačni reg. iz nerja. jekla 1.4571 G 1/4, 0.5 - 10 bar
SKU: 101187RIE
EAN: 4047322118347

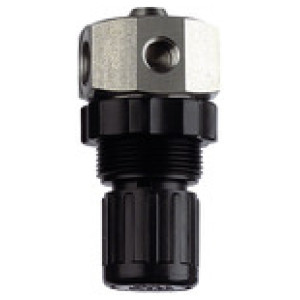

Stainless steel pressure regulator, 1.4571, for liquid media, without pressure gauge, G 1/4, Control range 0.5 - 10 bar
Diaphragm pressure regulators with non-self-relieving design.
The pressure setting can be locked by pushing the knob down.
Čas dobave: Predvidoma 3 - 5 dni
355,52 €
ali od 12,11 € / mesec
Izračunaj obrok
Obrestno financiranje
- 12,11 € x 36 mesecev
- 17,40 € x 24 mesecev
- 33,31 € x 12 mesecev
- 65,16 € x 6 mesecev
- 128,88 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Tlačna vzmet | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 101187RIE | Stainless steel | 0.5 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 355,52 € |  | |
| 101186RIE | Steel | 0.2 | 6 | Čas dobave: Predvidoma 3 - 5 dni | 355,52 € | | |
| 101185RIE | Steel | 0.1 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 355,52 € | |
Opis
Stainless steel pressure regulator, 1.4571, for liquid media, without pressure gauge, G 1/4, Control range 0.5 - 10 bar
Diaphragm pressure regulators with non-self-relieving design.
The pressure setting can be locked by pushing the knob down.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 25 |
| Ohišje | Stainless steel V4A (1.4571) |
| Tesnilo | FKM |
| Membrane | FKM |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Notranji deli | Stainless steel V4A (1.4571) |
| Pretok [l/min] | 320 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |

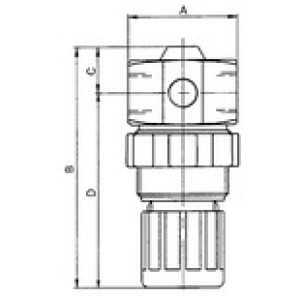

| A [mm] | 36.0 |
| B [mm] | 81.0 |
| C [mm] | 16.0 |
| D [mm] | 65.0 |
| Tlačna vzmet | Stainless steel |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
