Tirnica z razdelilnikom, obojestranski, vhod 2x1/2, izhod 6+6x1/4
SKU: 112559RIE
EAN: 4047322387248

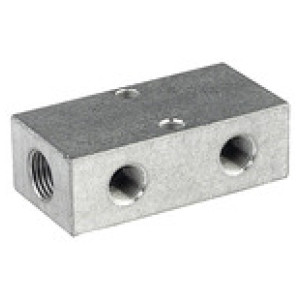

Distributor strip, Outlets both sides, front and back, Input 2 x 1/2, Output 6 + 6 x 1/4, Aluminium
For easy assembly of compressed air taps (screw fittings, unions, couplings, etc.).
Optionally with 2, 3, 4, or 6 outlets on one side or both sides.
Čas dobave: Predvidoma 3 - 5 dni
46,57 €

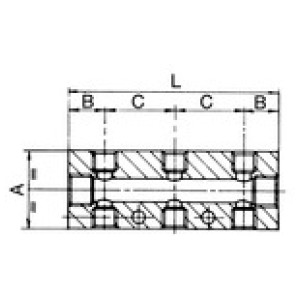

| Šifra | Izhod | Vhod | B [mm] | C [mm] | A [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 112556RIE | 2 + 2 x 1/4 | 2 x 1/2 | 22.0 | 36.0 | 40.0 | 80.0 | Čas dobave: Predvidoma 3 - 5 dni | 24,16 € |  | |
| 112547RIE | 6 + 6 x M5 | 2 x 1/8 | 15.0 | 15.0 | 20.0 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,97 € | | |
| 112549RIE | 3 + 3 x 1/8 | 2 x 1/4 | 15.0 | 30.0 | 30.0 | 90.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,04 € | | |
| 112558RIE | 4 + 4 x 1/4 | 2 x 1/2 | 22.0 | 36.0 | 40.0 | 152.0 | Čas dobave: Predvidoma 3 - 5 dni | 29,17 € | | |
| 112559RIE | 6 + 6 x 1/4 | 2 x 1/2 | 22.0 | 36.0 | 40.0 | 224.0 | Čas dobave: Predvidoma 3 - 5 dni | 46,57 € | | |
| 112550RIE | 4 + 4 x 1/8 | 2 x 1/4 | 15.0 | 30.0 | 30.0 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,07 € | | |
| 112548RIE | 2 + 2 x 1/8 | 2 x 1/4 | 15.0 | 30.0 | 30.0 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,98 € | | |
| 112552RIE | 2 + 2 x 1/4 | 2 x 3/8 | 18.0 | 36.0 | 40.0 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,36 € | | |
| 112555RIE | 6 + 6 x 1/4 | 2 x 3/8 | 18.0 | 36.0 | 40.0 | 216.0 | Čas dobave: Predvidoma 3 - 5 dni | 32,55 € | | |
| 112544RIE | 2 + 2 x M5 | 2 x 1/8 | 15.0 | 15.0 | 20.0 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,10 € | | |
| 112551RIE | 6 + 6 x 1/8 | 2 x 1/4 | 15.0 | 30.0 | 30.0 | 180.0 | Čas dobave: Predvidoma 3 - 5 dni | 25,91 € | | |
| 112545RIE | 3 + 3 x M5 | 2 x 1/8 | 15.0 | 15.0 | 20.0 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,72 € | | |
| 112554RIE | 4 + 4 x 1/4 | 2 x 3/8 | 18.0 | 36.0 | 40.0 | 144.0 | Čas dobave: Predvidoma 3 - 5 dni | 23,48 € | | |
| 112553RIE | 3 + 3 x 1/4 | 2 x 3/8 | 18.0 | 36.0 | 40.0 | 108.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,30 € | | |
| 112546RIE | 4 + 4 x M5 | 2 x 1/8 | 15.0 | 15.0 | 20.0 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,90 € | | |
| 112557RIE | 3 + 3 x 1/4 | 2 x 1/2 | 22.0 | 36.0 | 40.0 | 116.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,65 € | |
Opis
Distributor strip, Outlets both sides, front and back, Input 2 x 1/2, Output 6 + 6 x 1/4, Aluminium
For easy assembly of compressed air taps (screw fittings, unions, couplings, etc.).
Optionally with 2, 3, 4, or 6 outlets on one side or both sides.
Tehnični podatki in specifikacije
| L [mm] | 224.0 |
| A [mm] | 40.0 |
| B [mm] | 22.0 |
| C [mm] | 36.0 |
| Vhod | 2 x 1/2 |
| Izhod | 6 + 6 x 1/4 |
