Tir. z razdel., izhodni eno stranski, vhod 2x1/8, izhod 6 x M5
SKU: 112527RIE
EAN: 4047322169998

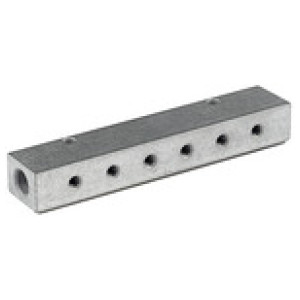

Distributor strip, Outlets one side front, Input 2 x 1/8, Output 6 x M5, Aluminium
For easy assembly of compressed air taps (screw fittings, unions, couplings, etc.).
Optionally with 2, 3, 4, or 6 outlets on one side or both sides.
Čas dobave: Predvidoma 3 - 5 dni
21,37 €
| Šifra | Vhod | Izhod | B [mm] | A [mm] | C [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 112537RIE | 2 x 3/8 | 3 x 1/8 | 18.0 | 30.0 | 30.0 | 96.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,19 € |  | |
| 112527RIE | 2 x 1/8 | 6 x M5 | 15.0 | 20.0 | 15.0 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,37 € | | |
| 112535RIE | 2 x 3/8 | 6 x 1/4 | 18.0 | 30.0 | 36.0 | 216.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,40 € | | |
| 112533RIE | 2 x 3/8 | 3 x 1/4 | 18.0 | 30.0 | 36.0 | 108.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,96 € | | |
| 112543RIE | 2 x 1/2 | 6 x 1/4 | 22.0 | 40.0 | 36.0 | 224.0 | Čas dobave: Predvidoma 3 - 5 dni | 49,09 € | | |
| 112526RIE | 2 x 1/8 | 4 x M5 | 15.0 | 20.0 | 15.0 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,13 € | | |
| 112538RIE | 2 x 3/8 | 4 x 1/8 | 18.0 | 30.0 | 30.0 | 126.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,58 € | | |
| 112528RIE | 2 x 1/4 | 2 x 1/8 | 15.0 | 30.0 | 30.0 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,66 € | | |
| 112530RIE | 2 x 1/4 | 4 x 1/8 | 15.0 | 30.0 | 30.0 | 120.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,81 € | | |
| 112541RIE | 2 x 1/2 | 3 x 1/4 | 22.0 | 40.0 | 36.0 | 116.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,82 € | | |
| 112524RIE | 2 x 1/8 | 2 x M5 | 15.0 | 20.0 | 15.0 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,94 € | | |
| 112531RIE | 2 x 1/4 | 6 x 1/8 | 15.0 | 30.0 | 30.0 | 180.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,37 € | | |
| 112542RIE | 2 x 1/2 | 4 x 1/4 | 22.0 | 40.0 | 36.0 | 152.0 | Čas dobave: Predvidoma 3 - 5 dni | 36,30 € | | |
| 112540RIE | 2 x 1/2 | 2 x 1/4 | 22.0 | 40.0 | 36.0 | 80.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,93 € | | |
| 112534RIE | 2 x 3/8 | 4 x 1/4 | 18.0 | 30.0 | 36.0 | 144.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,89 € | | |
| 112536RIE | 2 x 3/8 | 2 x 1/8 | 18.0 | 40.0 | 30.0 | 66.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,53 € | | |
| 112539RIE | 2 x 3/8 | 6 x 1/8 | 18.0 | 30.0 | 30.0 | 186.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,71 € | | |
| 112532RIE | 2 x 3/8 | 2 x 1/4 | 18.0 | 40.0 | 36.0 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,85 € | | |
| 112529RIE | 2 x 1/4 | 3 x 1/8 | 15.0 | 30.0 | 30.0 | 90.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,69 € | | |
| 112525RIE | 2 x 1/8 | 3 x M5 | 15.0 | 20.0 | 15.0 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,18 € | |
Opis
Distributor strip, Outlets one side front, Input 2 x 1/8, Output 6 x M5, Aluminium
For easy assembly of compressed air taps (screw fittings, unions, couplings, etc.).
Optionally with 2, 3, 4, or 6 outlets on one side or both sides.

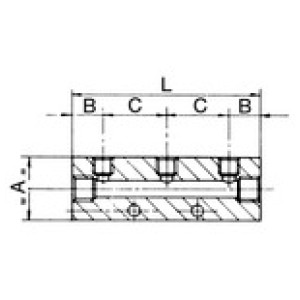

Tehnični podatki in specifikacije
| L [mm] | 105.0 |
| A [mm] | 20.0 |
| B [mm] | 15.0 |
| C [mm] | 15.0 |
| Vhod | 2 x 1/8 |
| Izhod | 6 x M5 |
