* slike so simbolične

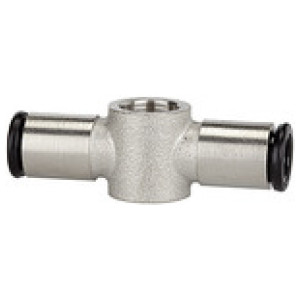

T-obroč kos za votli vijak G 1/4, za cev zunanji Ø 8 mm
SKU: 108848RIE
EAN: 4047322286015
T-ring piece, for hollow screw G 1/4, for hose exterior Ø 8 mm, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 70 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Čas dobave: Predvidoma 3 - 5 dni
7,05 €
| Šifra | Rokav | Za banjo vijak | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 108845RIE | POM black | G 1/8 | 6 | 15.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € |  | |
| 108851RIE | Black nickel-plated brass | G 3/8 | 10 | 20.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,98 € | | |
| 108843RIE | POM black | M5 | 4 | 9.0 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € | | |
| 108849RIE | Black nickel-plated brass | G 1/4 | 10 | 17.0 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,10 € | | |
| 108847RIE | POM black | G 1/4 | 6 | 17.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,93 € | | |
| 108844RIE | POM black | G 1/8 | 4 | 15.0 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,11 € | | |
| 108852RIE | Black nickel-plated brass | G 3/8 | 12 | 20.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,03 € | | |
| 108846RIE | POM black | G 1/8 | 8 | 15.0 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,11 € | | |
| 108850RIE | POM black | G 3/8 | 8 | 20.0 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,33 € | | |
| 108848RIE | POM black | G 1/4 | 8 | 17.0 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,05 € | |
Opis
T-ring piece, for hollow screw G 1/4, for hose exterior Ø 8 mm, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 70 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Priporočena cev | PA, PU |
| Rokav | POM black |
| Vpenjalni obroč | Stainless steel |
| Za cevi O.D. [mm] | 8 |

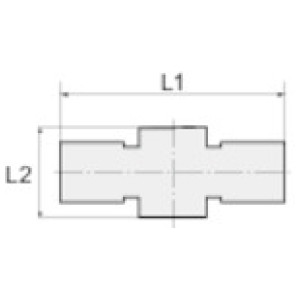

| L1 [mm] | 52.0 |
| L2 [mm] | 17.0 |
| Za banjo vijak | G 1/4 |
| Material | Nickel-plated brass |
