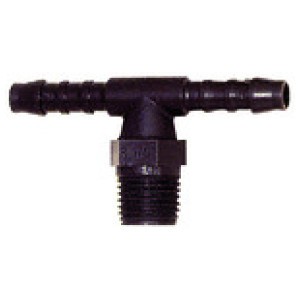

T navojni tulec M, R 1/4 o., za za cev I.D. 8 mm, AF 14, PA 6
SKU: 110968RIE
EAN: 4047322072892
T screw-in supports, R 1/4 o., for hose I.D. 8 mm, AF 14, Over-pressure max. 10 bar, Temperature range -40 °C to 90 °C, PA 6
Lightweight tube connectors distinguished by high strength, toughness, resistance to abrasion and impact resistance.
Čas dobave: Predvidoma 3 - 5 dni
1,05 €

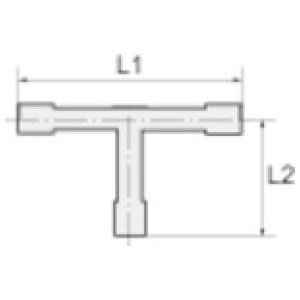

| Šifra | Navoj | Za cevi [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110966RIE | R 1/4 | I.D. 4 | 14 | 23.0 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 0,87 € |  | |
| 110968RIE | R 1/4 | I.D. 8 | 14 | 27.5 | 66.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,05 € | | |
| 110965RIE | R 1/8 | I.D. 6 | 10 | 21.0 | 57.0 | Čas dobave: Predvidoma 3 - 5 dni | 0,83 € | | |
| 110967RIE | R 1/4 | I.D. 6 | 14 | 26.0 | 57.0 | Čas dobave: Predvidoma 3 - 5 dni | 0,87 € | | |
| 110964RIE | R 1/8 | I.D. 4 | 10 | 18.0 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 0,70 € | | |
| 110969RIE | R 3/8 | I.D. 10 | 17 | 30.0 | 71.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,59 € | |
Opis
T screw-in supports, R 1/4 o., for hose I.D. 8 mm, AF 14, Over-pressure max. 10 bar, Temperature range -40 °C to 90 °C, PA 6
Lightweight tube connectors distinguished by high strength, toughness, resistance to abrasion and impact resistance.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -40 |
| Max. temperaturno območje [°C] | 90 |
| Max. dovoljeni tlak [bar] | 10 |
| Material | Polyamide (PA 6) |
| Navoj | R 1/4 |
| Za cevi [mm] | I.D. 8 |
| L1 [mm] | 66.0 |
| L2 [mm] | 27.5 |
| a/f [mm] | 14 |
