* slike so simbolične

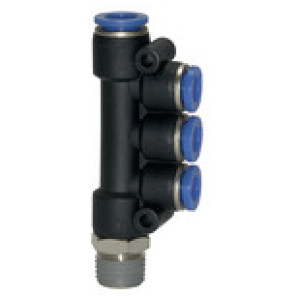

T-multi-distributer »Blue serija«, ki se vrti, R 1/8 o.
SKU: 109739RIE
EAN: 4047322197809
T-multi-distributor »Blue Series«, rotating, R 1/8 o., for hose exterior Ø 1x6/3x4 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
4,81 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109737RIE | R 1/4 | 4x8 | 14 | 24.0 | 90.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,42 € |  | |
| 109742RIE | R 1/4 | 1x8 / 3x4 | 14 | 20.6 | 70.4 | Čas dobave: Predvidoma 3 - 5 dni | 7,70 € | | |
| 109736RIE | R 1/4 | 4x6 | 12 | 24.0 | 70.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,30 € | | |
| 109738RIE | R 3/8 | 4x8 | 14 | 24.0 | 91.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,89 € | | |
| 109741RIE | R 1/4 | 1x6 / 3x4 | 14 | 19.6 | 66.2 | Čas dobave: Predvidoma 3 - 5 dni | 10,14 € | | |
| 109744RIE | R 3/8 | 1x10 / 3x8 | 17 | 23.9 | 92.1 | Čas dobave: Predvidoma 3 - 5 dni | 8,49 € | | |
| 109735RIE | R 1/8 | 4x8 | 14 | 24.0 | 88.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,30 € | | |
| 109743RIE | R 3/8 | 1x8 / 3x6 | 17 | 20.6 | 71.9 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | | |
| 109734RIE | R 1/8 | 4x6 | 12 | 24.0 | 68.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,23 € | | |
| 109733RIE | R 1/8 | 4x4 | 10 | 19.0 | 63.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,31 € | | |
| 135711RIE | R 3/8 | 4x6 | 17 | 20.1 | 72.1 | Čas dobave: Predvidoma 3 - 5 dni | 7,59 € | | |
| 109740RIE | R 1/4 | 1x8 / 3x6 | 14 | 20.3 | 70.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,10 € | | |
| 135710RIE | R 1/4 | 4x4 | 14 | 19.0 | 66.5 | Čas dobave: Predvidoma 3 - 5 dni | 6,11 € | | |
| 109739RIE | R 1/8 | 1x6 / 3x4 | 12 | 19.0 | 64.3 | Čas dobave: Predvidoma 3 - 5 dni | 4,81 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/8 |
| Za cevi O.D. [mm] | 1x6 / 3x4 |
| L1 [mm] | 64.3 |
| L2 [mm] | 19.0 |
| a/f [mm] | 12 |
| Material | Plastic and nickel-plated brass |
