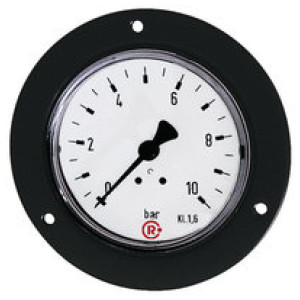

Standardni manometer, sprednji obroč, G 1/4, 0-1.6 bar, Ø 63
SKU: 101902RIE
EAN: 7638219
Standard pressure gauge with front ring black, Connection, rear, centric, G 1/4, Goods class 1.6, Measurement range 0-1.6 bar, Ø63
Bourdon-tube pressure gauge in standard design,
either with panel-mounting bezel made of chrome-plated or black sheet steel or
with 3-hole bezel made of chrome-plated sheet steel.
Suitable for gaseous or liquid media which do not corrode copper alloy,
do not have high viscosity and do not crystallise.
Čas dobave: Predvidoma 3 - 5 dni
23,94 €
| Šifra | Merilno območje min. bar | Povezava | Spodnja/Zgornja meja območja | Stopnja rasti na območju skale - bar [bar] | Merilno območje max. bar | Premer [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 101892RIE | 0 | G 1/4 | Positive pressure | 0.1 | 2.5 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € |  | |
| 101901RIE | 0 | G 1/4 | Positive pressure | 0.05 | 1 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101908RIE | 0 | G 1/4 | Positive pressure | 1 | 25 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101888RIE | 0 | G 1/8 | Positive pressure | 2 | 40 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101887RIE | 0 | G 1/8 | Positive pressure | 1 | 25 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101909RIE | 0 | G 1/4 | Positive pressure | 2 | 40 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101896RIE | 0 | G 1/4 | Positive pressure | 0.5 | 16 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101895RIE | 0 | G 1/4 | Positive pressure | 0.5 | 10 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101886RIE | 0 | G 1/8 | Positive pressure | 0.5 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101899RIE | 0 | G 1/4 | Positive pressure | 2 | 60 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101894RIE | 0 | G 1/4 | Positive pressure | 0.2 | 6 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101902RIE | 0 | G 1/4 | Positive pressure | 0.05 | 1.6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101885RIE | 0 | G 1/8 | Positive pressure | 0.5 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101881RIE | 0 | G 1/8 | Positive pressure | 0.05 | 1.6 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101893RIE | 0 | G 1/4 | Positive pressure | 0.2 | 4 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101891RIE | 0 | G 1/4 | Positive pressure | 0.05 | 1.6 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101883RIE | 0 | G 1/8 | Positive pressure | 0.2 | 4 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101905RIE | 0 | G 1/4 | Positive pressure | 0.2 | 6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101879RIE | -1 | G 1/8 | Vacuum | 0.05 | 0 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101907RIE | 0 | G 1/4 | Positive pressure | 0.5 | 16 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101880RIE | 0 | G 1/8 | Positive pressure | 0.05 | 1 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101906RIE | 0 | G 1/4 | Positive pressure | 0.5 | 10 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101884RIE | 0 | G 1/8 | Positive pressure | 0.2 | 6 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101910RIE | 0 | G 1/4 | Positive pressure | 2 | 60 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101900RIE | -1 | G 1/4 | Vacuum | 0.05 | 0 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101897RIE | 0 | G 1/4 | Positive pressure | 1 | 25 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101903RIE | 0 | G 1/4 | Positive pressure | 0.1 | 2.5 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101890RIE | 0 | G 1/4 | Positive pressure | 0.05 | 1 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101898RIE | 0 | G 1/4 | Positive pressure | 2 | 40 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101882RIE | 0 | G 1/8 | Positive pressure | 0.1 | 2.5 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 21,81 € | | |
| 101889RIE | -1 | G 1/4 | Vacuum | 0.05 | 0 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | | |
| 101904RIE | 0 | G 1/4 | Positive pressure | 0.2 | 4 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 23,94 € | |
Opis
Standard pressure gauge with front ring black, Connection, rear, centric, G 1/4, Goods class 1.6, Measurement range 0-1.6 bar, Ø63
Bourdon-tube pressure gauge in standard design,
either with panel-mounting bezel made of chrome-plated or black sheet steel or
with 3-hole bezel made of chrome-plated sheet steel.
Suitable for gaseous or liquid media which do not corrode copper alloy,
do not have high viscosity and do not crystallise.
Tehnični podatki in specifikacije
| Povezava | G 1/4 |
| Položaj povezave | rear, centrical |
| Premer [mm] | 63 |
| Vrsta | 111.12 |
| Razred točnosti | 1.6 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 60 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 60 |
| Ohišje | Sheet steel |
| Merilni element | Copper alloy |
| Premikanje | Copper alloy |
| Prednje steklo | Transparent plastic |
| Merilno območje max. bar | 1.6 |
| Stopnja rasti na območju skale - bar [bar] | 0.05 |
| Spodnja/Zgornja meja območja | Positive pressure |
| Material Prozessanschluss | Copper alloy |
