* slike so simbolične

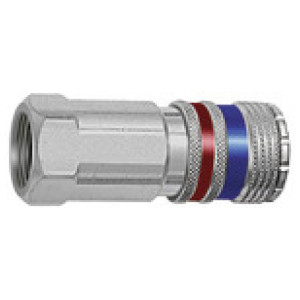

Spojka z N.N. I.D. 7.6 /Med.pocinkanoG 1/4 N.N.
SKU: 107592RIE
EAN: 4047322364973
Safety coupling I.D. 7.6, Steel / brass galv., G 1/4 IT, Operating pressure max. 16 bar, Med./ambient temp. -20 °C to 100 °C
"High-quality, robust and durable, one-hand quick disconnect safety couplings, with very high flow rates and only a small pressure drop.
The coupling is released fully automatically in two steps. Air is relieved from the coupling before it is completely disconnected. The plug is only disconnected from the coupling if the residual pressure has dropped below 0.3 bar. The dreaded ""whiplash effect"" is thus avoided and the risk of injury virtually eliminated.
This safety version conforms to ISO-Standard DIN EN ISO 4414.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive, mining.
"| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107594RIE | G 1/2 IT | 25 | 59.5 | Čas dobave: Predvidoma 3 - 5 dni | 40,54 € |  | |
| 107593RIE | G 3/8 IT | 22 | 60.1 | Čas dobave: Predvidoma 3 - 5 dni | 39,48 € | | |
| 107592RIE | G 1/4 IT | 20 | 57.1 | Čas dobave: Predvidoma 3 - 5 dni | 39,48 € | |
Opis
Safety coupling I.D. 7.6, Steel / brass galv., G 1/4 IT, Operating pressure max. 16 bar, Med./ambient temp. -20 °C to 100 °C
"High-quality, robust and durable, one-hand quick disconnect safety couplings, with very high flow rates and only a small pressure drop.
The coupling is released fully automatically in two steps. Air is relieved from the coupling before it is completely disconnected. The plug is only disconnected from the coupling if the residual pressure has dropped below 0.3 bar. The dreaded ""whiplash effect"" is thus avoided and the risk of injury virtually eliminated.
This safety version conforms to ISO-Standard DIN EN ISO 4414.
These safety couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, workshops, automotive, mining.
"Tehnični podatki in specifikacije
| DN | 7.6 |
| Max. obratovalni tlak [bar] | 16 |
| Povezava | G 1/4 IT |
| a/f [mm] | 20 |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 2250 l/min (air) |
| Vzmet | Stainless steel |
| Material | Steel / zinc-plated brass |
| Dolžina [mm] | 57.1 |
