* slike so simbolične
Sintrani bron Glušniknavoj iz med. /ŠesterokotniG 3/4AF 30
SKU: 100293RIE
EAN: 4047322101233

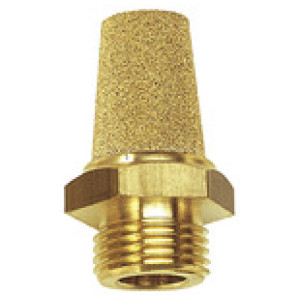

Sintered bronze silencer, Brass thread / hexagonal, G 3/4, AF 30, Operating pressure 0 - 8 bar, Operating temp. -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Čas dobave: Predvidoma 3 - 5 dni
13,86 €

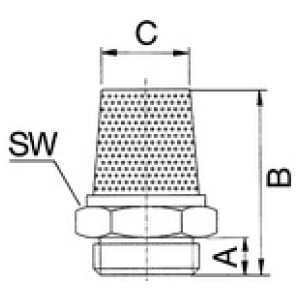

| Šifra | Navoj | A [mm] | C [mm] | a/f [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 113346RIE | G 3/8 | 7.0 | 14.0 | 19 | 35.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,31 € |  | |
| 113344RIE | M5 | 5.0 | 4.0 | 9 | 18.5 | Čas dobave: Predvidoma 3 - 5 dni | 1,72 € | | |
| 100292RIE | G 1/2 | 8.0 | 16.0 | 23 | 41.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,99 € | | |
| 100293RIE | G 3/4 | 9.0 | 21.0 | 30 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,86 € | | |
| 113347RIE | G 1 | 12.0 | 27.0 | 36 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,76 € | | |
| 113345RIE | G 1/8 | 4.5 | 8.5 | 12 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,21 € | | |
| 100290RIE | G 1/4 | 6.0 | 11.0 | 15 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,34 € | |
Opis
Sintered bronze silencer, Brass thread / hexagonal, G 3/4, AF 30, Operating pressure 0 - 8 bar, Operating temp. -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 8 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 250 |
| Raven hrupa pri 6 bar [dB] | 71 to 108 |
| Navoj | G 3/4 |
| a/f [mm] | 30 |
| A [mm] | 9.0 |
| B [mm] | 53.0 |
| C [mm] | 21.0 |
| Opis | Silencer, sintered bronze, with brass hexagon nut and thread |
