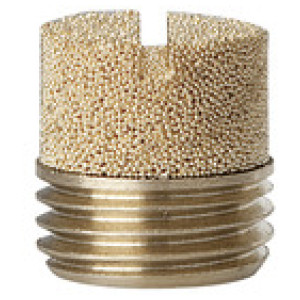

Sintrani bron Glušnik, zareza, G 3/8
SKU: 113354RIE
EAN: 4047322101004
Sintered bronze silencer, Slot, G 3/8, Operating pressure max. 10 bar, Operating temperature -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Čas dobave: Predvidoma 3 - 5 dni
6,30 €

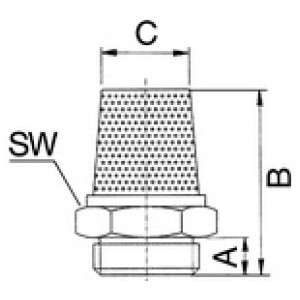

Šifra | Navoj | A [mm] | B [mm] | C [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
100291RIE | G 1/2 | 10.0 | 19.6 | 20.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,19 € | | |
113353RIE | G 1/8 | 6.5 | 12.5 | 9.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,98 € | | |
113355RIE | G 3/4 | 11.0 | 23.0 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,18 € | | |
113356RIE | G 1 | 13.0 | 24.0 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 26,03 € | | |
113354RIE | G 3/8 | 7.5 | 16.0 | 16.2 | Čas dobave: Predvidoma 3 - 5 dni | 6,30 € | | |
100289RIE | G 1/4 | 6.5 | 13.5 | 12.6 | Čas dobave: Predvidoma 3 - 5 dni | 4,53 € | |
Opis
Sintered bronze silencer, Slot, G 3/8, Operating pressure max. 10 bar, Operating temperature -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Tehnični podatki in specifikacije
Max. obratovalni tlak [bar] | 10 |
Min. delovna temperatura [°C] | -10 |
Max. delovna temperatura [°C] | 250 |
Navoj | G 3/8 |
A [mm] | 7.5 |
B [mm] | 16.0 |
C [mm] | 16.2 |
Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
