Sintrani bron Glušnik »value line« raven, Šesterokotni, G 1/2
SKU: 116294RIE
EAN: 4047322227100

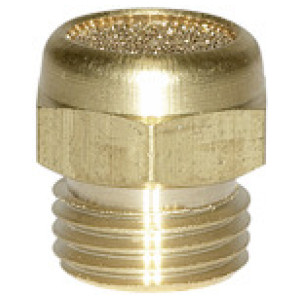

Sintered bronze silencer »value line« flat, Hexagonal, G 1/2, Operating pressure max. 10 bar, Operating temp. -10 °C to 200 °C
For reducing the exhaust noise generated by pneumatic equipment.

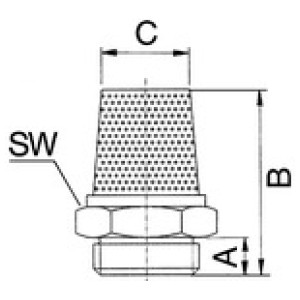

Šifra | Navoj | A [mm] | B [mm] | C [mm] | a/f [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
116291RIE | G 1/8 | 5.5 | 10.5 | 11.0 | 13 | Čas dobave: Predvidoma 3 - 5 dni | 1,13 € | | |
116293RIE | G 3/8 | 7.5 | 16.0 | 17.0 | 22 | Čas dobave: Predvidoma 3 - 5 dni | 2,62 € | | |
116292RIE | G 1/4 | 7.0 | 13.5 | 13.0 | 17 | Čas dobave: Predvidoma 3 - 5 dni | 1,44 € | | |
116294RIE | G 1/2 | 9.5 | 18.0 | 20.0 | 24 | Čas dobave: Predvidoma 3 - 5 dni | 3,71 € | | |
116290RIE | M5 | 4.0 | 7.6 | 6.0 | 8 | Čas dobave: Predvidoma 3 - 5 dni | 1,01 € | |
Opis
Sintered bronze silencer »value line« flat, Hexagonal, G 1/2, Operating pressure max. 10 bar, Operating temp. -10 °C to 200 °C
For reducing the exhaust noise generated by pneumatic equipment.
Tehnični podatki in specifikacije
Max. obratovalni tlak [bar] | 10 |
Min. delovna temperatura [°C] | -10 |
Max. delovna temperatura [°C] | 200 |
Raven hrupa pri 6 bar [dB] | 80 ~ 90 dB (A) |
Navoj | G 1/2 |
a/f [mm] | 24 |
A [mm] | 9.5 |
B [mm] | 18.0 |
C [mm] | 20.0 |
