Sintrani bron Glušnik, Šesterokotni, G 1/8, AF 13
SKU: 113338RIE
EAN: 4047322101141

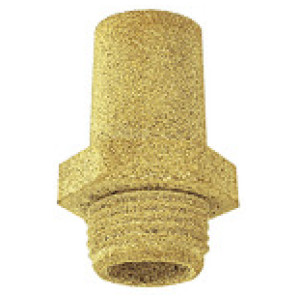

Sintered bronze silencer, Hexagonal, G 1/8, AF 13, Operating pressure 0 - 8 bar, Operating temperature -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Čas dobave: Predvidoma 3 - 5 dni
4,59 €

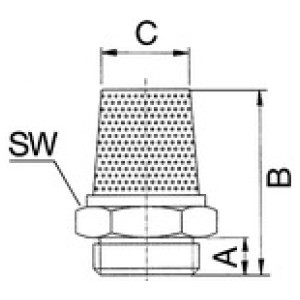

| Šifra | Navoj | A [mm] | C [mm] | a/f [mm] | B [mm] | Pretok pri 6 bar [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 113342RIE | G 3/4 | 14.0 | 22.0 | 32 | 54.0 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 16,81 € |  | |
| 113339RIE | G 1/4 | 8.0 | 12.0 | 17 | 34.0 | 1700 | Čas dobave: Predvidoma 3 - 5 dni | 5,69 € | | |
| 113338RIE | G 1/8 | 6.0 | 8.0 | 13 | 28.0 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 4,59 € | | |
| 113343RIE | G 1 | 16.0 | 28.0 | 41 | 66.0 | 7300 | Čas dobave: Predvidoma 3 - 5 dni | 22,03 € | | |
| 113340RIE | G 3/8 | 10.0 | 15.0 | 22 | 36.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 8,15 € | | |
| 113341RIE | G 1/2 | 12.0 | 19.0 | 27 | 44.0 | 3750 | Čas dobave: Predvidoma 3 - 5 dni | 13,98 € | |
Opis
Sintered bronze silencer, Hexagonal, G 1/8, AF 13, Operating pressure 0 - 8 bar, Operating temperature -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 8 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 250 |
| Material | Sintered bronze |
| Raven hrupa pri 6 bar [dB] | 71 to 108 |
| Navoj | G 1/8 |
| a/f [mm] | 13 |
| A [mm] | 6.0 |
| B [mm] | 28.0 |
| C [mm] | 8.0 |
| Pretok pri 6 bar [l/min] | 1200 |
| Velikost odprtin max. [µm] | 50 |
