Servisna enota VARNOSTNA »FUTURA«, Velikost 1, G 1/4
SKU: 100243RIE
EAN: 4047322246194

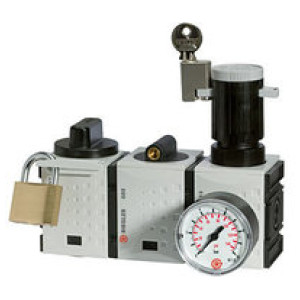

Service station SAFETY »FUTURA«, Ball valve - start-up valve - pressure regulator, Size 1, G 1/4, Input pressure 2.5 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Obrestno financiranje
- 15,91 € x 12 mesecev
- 31,12 € x 6 mesecev
- 61,55 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Velikost | C [mm] | B [mm] | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 100247RIE | G 3/4 | 4 | 137.0 | 191.0 | 255.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 541,36 € |  | |
| 100246RIE | G 1/2 | 2 | 110.0 | 150.0 | 189.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 232,32 € | | |
| 100248RIE | G 1 | 4 | 137.0 | 191.0 | 255.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 541,36 € | | |
| 100245RIE | G 3/8 | 2 | 110.0 | 150.0 | 189.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 232,32 € | | |
| 100243RIE | G 1/4 | 1 | 96.0 | 129.0 | 156.0 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 170,15 € | | |
| 100244RIE | G 3/8 | 1 | 96.0 | 129.0 | 156.0 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 170,15 € | |
Opis
Service station SAFETY »FUTURA«, Ball valve - start-up valve - pressure regulator, Size 1, G 1/4, Input pressure 2.5 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Min. vhodni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Min. krmilno območje [bar] | 2.5 |
| Max. krmilno območje [bar] | 8 |
| Zaslon manometra max. [bar] | 10 |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Odzračevalni vtič | Silencer (ball valve) |
| Pretok [l/min] | 1900 |

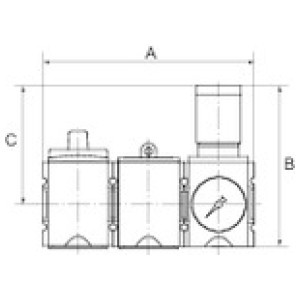

| A [mm] | 156.0 |
| B [mm] | 129.0 |
| C [mm] | 96.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
