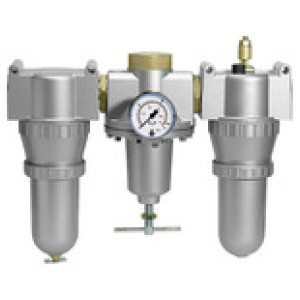

Service unit 3-part »Standard«, Metal container, Size 2, G 3/8
SKU: 129495RIE
EAN: 4047322731652
Service unit 3-part »Standard«, Metal container, metal drip cap, Size 2, G 3/8, Input press. max. 25 bar, Control range 0.5-16 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Šifra | Merjenje pretoka | Navoj | Velikost | Rang filtra [µm] | DN | C [mm] | Manometer Ø [mm] | B [mm] | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
101085RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 | 3 | 5 | 25 | 58.0 | 63 | 230.5 | 302.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 521,34 € | ||
101087RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/2 | 4 | 40 | 35 | 70.0 | 63 | 316.0 | 395.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 999,28 € | ||
101083RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/2 | 3 | 5 | 15 | 55.0 | 63 | 226.0 | 259.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 289,64 € | ||
101086RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/4 | 4 | 40 | 25 | 70.0 | 63 | 316.0 | 395.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 1.049,57 € | ||
101080RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/4 | 1 | 5 | 6 | 51.0 | 50 | 184.5 | 172.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 190,30 € | ||
101082RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 2 | 40 | 6 | 51.0 | 50 | 210.0 | 232.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 262,01 € | ||
129495RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p = 1 bar | G 3/8 | 2 | 5 | 6 | 51.0 | 50 | 210.0 | 232.0 | 1400 | Ni na zalogi | ? | Povpraševanje | |
101084RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/4 | 3 | 5 | 20 | 58.0 | 63 | 230.5 | 302.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 521,34 € | ||
101081RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 1 | 5 | 6 | 51.0 | 50 | 184.5 | 185.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 190,30 € |
Opis
Service unit 3-part »Standard«, Metal container, metal drip cap, Size 2, G 3/8, Input press. max. 25 bar, Control range 0.5-16 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
Navoj | G 3/8 |
Max. vhodni tlak [bar] | 25 |
Velikost | 2 |
Ohišje | Die-cast zinc / aluminium, painted silver |
Tesnilo | NBR |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 1400 |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 16 |
Zaslon manometra max. [bar] | 25 |
Odtok kondenzata | Manuel |
DN | 6 |
Manometer Ø [mm] | 50 |
Vidna kupola | Zinc-glass-NBR |
Rang filtra [µm] | 5 |
Posoda | Metal container |

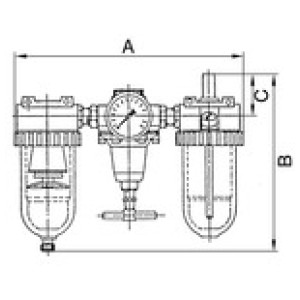

A [mm] | 232.0 |
B [mm] | 210.0 |
C [mm] | 51.0 |
Serija | Standard |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p = 1 bar |
