Serv. enota 3-delna »variobloc«Zašč. kletkaVel. 2G 3/4
SKU: 124860RIE
EAN: 4047322398398

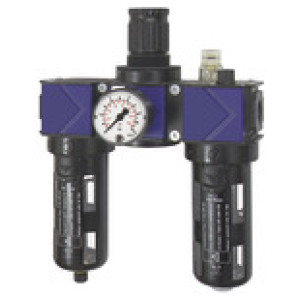

Service unit 3-part »variobloc«, PC container and protective cage, Size 2, G 3/4, Input pressure max. 16 bar, Temp. max. 50 °C
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Obrestno financiranje
- 11,33 € x 36 mesecev
- 16,28 € x 24 mesecev
- 31,16 € x 12 mesecev
- 60,96 € x 6 mesecev
- 120,56 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

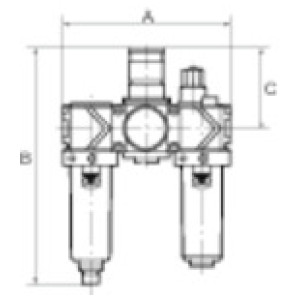

| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 124862RIE | G 1 | 2 | 98.0 | 264.0 | 274.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 384,96 € |  | |
| 124854RIE | G 1/4 | 1 | 68.0 | 144.0 | 201.0 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 227,14 € | | |
| 124856RIE | G 3/8 | 1 | 68.0 | 144.0 | 201.0 | 1800 | Čas dobave: Predvidoma 3 - 5 dni | 227,14 € | | |
| 124858RIE | G 1/2 | 2 | 98.0 | 210.0 | 274.0 | 3400 | Čas dobave: Predvidoma 3 - 5 dni | 333,43 € | | |
| 124860RIE | G 3/4 | 2 | 98.0 | 210.0 | 274.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 333,43 € | |
Opis
Service unit 3-part »variobloc«, PC container and protective cage, Size 2, G 3/4, Input pressure max. 16 bar, Temp. max. 50 °C
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Rang filtra [µm] | 40 |
| Vidna kupola | PA |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Vzmet pokrova motorja | POM |
| Odtok kondenzata | Manual |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 10 |
| Pretok [l/min] | 5000 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 210.0 |
| B [mm] | 274.0 |
| C [mm] | 98.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
