Serv. enota 3-delna »Stinard«Zašč. kletkaVel. 4G 1 1/4
SKU: 101078RIE
EAN: 4047322121651

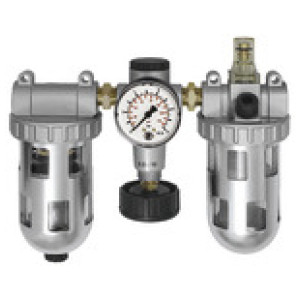

Service unit 3-part »Standard«, PC container, protective cage, Size 4, G 1 1/4, Input press. max. 16 bar, Control range 0.5-10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, centrifugal separator and proportional lubricator.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 100 € + 28,17 € x 48 mesecev
- 100 € + 36,00 € x 36 mesecev
- 100 € + 51,72 € x 24 mesecev
- 100 € + 99,00 € x 12 mesecev
- 100 € + 193,66 € x 6 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Merjenje pretoka | Navoj | Velikost | DN | Rang filtra [µm] | Manometer Ø [mm] | C [mm] | B [mm] | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
101074RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 2 | 6 | 40 | 50 | 51.0 | 196.7 | 232.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 250,58 € | | |
101076RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/4 | 3 | 20 | 5 | 63 | 58.0 | 227.9 | 302.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 532,93 € | | |
206303RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p = 1 bar | G 3/8 | 2 | 6 | 5 | 50 | 51.0 | 196.7 | 232.0 | 1400 | Ni na zalogi | ? | Povpraševanje | |
101079RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/2 | 4 | 35 | 40 | 63 | 70.0 | 313.4 | 395.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 1.008,18 € | | |
101077RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 | 3 | 25 | 5 | 63 | 58.0 | 227.9 | 302.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 532,93 € | | |
101072RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/4 | 1 | 6 | 5 | 50 | 51.0 | 182.6 | 172.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 179,19 € | | |
101078RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/4 | 4 | 25 | 40 | 63 | 70.0 | 313.4 | 395.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 1.057,86 € | | |
101075RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/2 | 3 | 15 | 5 | 63 | 55.0 | 223.4 | 259.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 288,10 € | | |
101073RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 1 | 6 | 5 | 50 | 51.0 | 182.6 | 185.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 179,19 € | |
Opis
Service unit 3-part »Standard«, PC container, protective cage, Size 4, G 1 1/4, Input press. max. 16 bar, Control range 0.5-10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
Navoj | G 1 1/4 |
Max. vhodni tlak [bar] | 16 |
Velikost | 4 |
Ohišje | Die-cast zinc / aluminium, painted silver |
Tesnilo | NBR |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 5000 |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 10 |
Zaslon manometra max. [bar] | 16 |
Odtok kondenzata | Semi-automatic |
DN | 25 |
Manometer Ø [mm] | 63 |
Vidna kupola | PA |
Rang filtra [µm] | 40 |
Posoda | Polycarbonate container with protective cage |

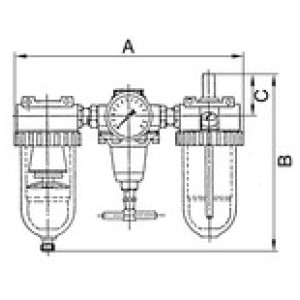

A [mm] | 395.0 |
B [mm] | 313.4 |
C [mm] | 70.0 |
Serija | Standard |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
