Serv. enota 3-delna »Stinard«Kov. pos.Vel.1,G 3/8
SKU: 101081RIE
EAN: 4047322121231

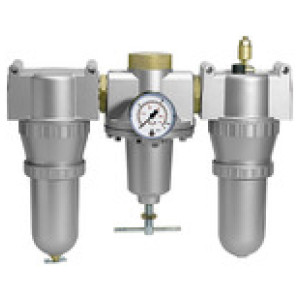

Service unit 3-part »Standard«, Metal container, metal drip cap, Size 1, G 3/8, Input press. max. 25 bar, Control range 0.5-16 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, centrifugal separator and proportional lubricator.
Obrestno financiranje
- 17,78 € x 12 mesecev
- 34,78 € x 6 mesecev
- 68,79 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

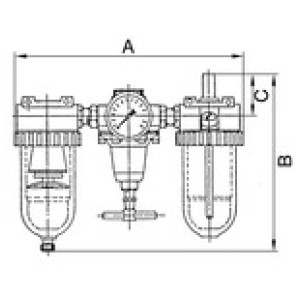

| Šifra | Merjenje pretoka | Navoj | Velikost | Rang filtra [µm] | DN | C [mm] | Manometer Ø [mm] | B [mm] | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101085RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 | 3 | 5 | 25 | 58.0 | 63 | 230.5 | 302.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 521,34 € |  | |
| 101087RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/2 | 4 | 40 | 35 | 70.0 | 63 | 316.0 | 395.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 999,28 € | | |
| 101083RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/2 | 3 | 5 | 15 | 55.0 | 63 | 226.0 | 259.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 289,64 € | | |
| 101086RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/4 | 4 | 40 | 25 | 70.0 | 63 | 316.0 | 395.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 1.049,57 € | | |
| 101080RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/4 | 1 | 5 | 6 | 51.0 | 50 | 184.5 | 172.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 190,30 € | | |
| 101082RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 2 | 40 | 6 | 51.0 | 50 | 210.0 | 232.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | 262,01 € | | |
| 129495RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p = 1 bar | G 3/8 | 2 | 5 | 6 | 51.0 | 50 | 210.0 | 232.0 | 1400 | Ni na zalogi | ? | Povpraševanje | |
| 101084RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/4 | 3 | 5 | 20 | 58.0 | 63 | 230.5 | 302.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 521,34 € | | |
| 101081RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 1 | 5 | 6 | 51.0 | 50 | 184.5 | 185.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 190,30 € | |
Opis
Service unit 3-part »Standard«, Metal container, metal drip cap, Size 1, G 3/8, Input press. max. 25 bar, Control range 0.5-16 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 25 |
| Velikost | 1 |
| Ohišje | Die-cast zinc / aluminium, painted silver |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 600 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 16 |
| Zaslon manometra max. [bar] | 25 |
| Odtok kondenzata | Manuel |
| DN | 6 |
| Manometer Ø [mm] | 50 |
| Vidna kupola | Zinc-glass-NBR |
| Rang filtra [µm] | 5 |
| Posoda | Metal container |
| A [mm] | 185.0 |
| B [mm] | 184.5 |
| C [mm] | 51.0 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
