* slike so simbolične
Serv. enota 2-delna »multifix« z PC zbir.Vel.1,G 3/8
SKU: 100567RIE
EAN: 4047322345262

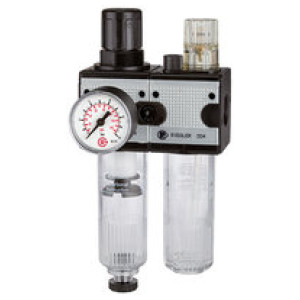

Service unit 2-part »multifix« with polycarbonate container, Size 1, G 3/8, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 11,60 € x 12 mesecev
- 22,70 € x 6 mesecev
- 44,89 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Ohišje | Velikost | Rang filtra [µm] | DN | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
100567RIE | G 3/8 | Die-cast zinc | 1 | 5 | 10 | 67.0 | 92.8 | 125.1 | 192.1 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 124,07 € | | |
100569RIE | G 3/4 | Die-cast zinc | 3 | 5 | 20 | 99.0 | 134.8 | 147.3 | 246.3 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 209,06 € | | |
100568RIE | G 1/2 | Die-cast zinc | 3 | 5 | 15 | 99.0 | 134.8 | 147.3 | 246.3 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 209,06 € | | |
100566RIE | G 1/4 | Die-cast zinc | 1 | 5 | 6 | 67.0 | 92.8 | 125.1 | 192.1 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 118,57 € | | |
100570RIE | G 1 | Aluminium | 5 | 40 | 25 | 128.0 | 200.0 | 253.8 | 381.8 | 13500 | Čas dobave: Predvidoma 3 - 5 dni | 641,20 € | |
Opis
Service unit 2-part »multifix« with polycarbonate container, Size 1, G 3/8, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
Navoj | G 3/8 |
Max. vhodni tlak [bar] | 16 |
Velikost | 1 |
Tesnilo | NBR |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Vzmet pokrova motorja | POM-brass |
Odtok kondenzata | Semi-automatic |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 10 |
Zaslon manometra max. [bar] | 16 |
Pretok [l/min] | 1200 |
DN | 10 |
Ohišje | Die-cast zinc |
Vidna kupola | PA |
Rang filtra [µm] | 5 |
Posoda | Polycarbonate container |

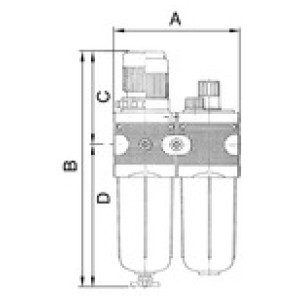

A [mm] | 92.8 |
B [mm] | 192.1 |
C [mm] | 67.0 |
D [mm] | 125.1 |
Serija | multifix |
Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
