Serv. enota 2-delna »multifix«Kov. pos.Vel.1,G 3/8
SKU: 100577RIE
EAN: 4047322125031

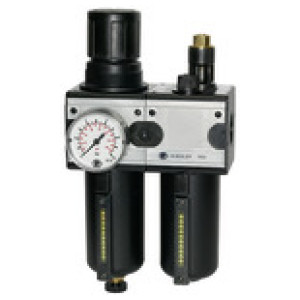

Service unit 2-part »multifix«, Metal container, Viewing tube, Size 1, G 3/8, Input pressure max. 20 bar, Control range 0.5-10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 17,97 € x 12 mesecev
- 35,14 € x 6 mesecev
- 69,51 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Ohišje | Velikost | DN | Rang filtra [µm] | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100580RIE | G 1 | Aluminium | 5 | 25 | 40 | 128.0 | 200.0 | 255.7 | 383.7 | 13500 | Čas dobave: Predvidoma 3 - 5 dni | 681,17 € |  | |
| 133125RIE | G 3/4 | Die-cast aluminium | 4 | 20 | 5 | 125.0 | 170.0 | 190.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 562,96 € | | |
| 100578RIE | G 1/2 | Die-cast zinc | 3 | 15 | 5 | 99.0 | 134.8 | 149.2 | 248.2 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 257,76 € | | |
| 100577RIE | G 3/8 | Die-cast zinc | 1 | 10 | 5 | 67.0 | 92.8 | 125.5 | 192.5 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 191,67 € | | |
| 100576RIE | G 1/4 | Die-cast zinc | 1 | 6 | 5 | 67.0 | 92.8 | 125.5 | 192.5 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 190,60 € | | |
| 100579RIE | G 3/4 | Die-cast zinc | 3 | 20 | 5 | 99.0 | 134.8 | 149.2 | 248.2 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 255,43 € | | |
| 133126RIE | G 1 | Die-cast aluminium | 4 | 25 | 5 | 125.0 | 170.0 | 190.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 562,96 € | |
Opis
Service unit 2-part »multifix«, Metal container, Viewing tube, Size 1, G 3/8, Input pressure max. 20 bar, Control range 0.5-10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 20 |
| Velikost | 1 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Odtok kondenzata | Semi-automatic |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Pretok [l/min] | 1200 |
| DN | 10 |
| Ohišje | Die-cast zinc |
| Vidna kupola | Zinc-glass-NBR |
| Rang filtra [µm] | 5 |
| Posoda | Metal container with viewing tube |

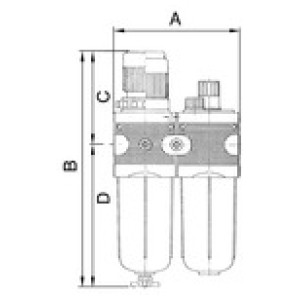

| A [mm] | 92.8 |
| B [mm] | 192.5 |
| C [mm] | 67.0 |
| D [mm] | 125.5 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
