Serv. enota 2-delna »GA« PC zbir.5 µm, Vel. 400, G 3/8
SKU: 178499RIE
EAN: 4047322666961

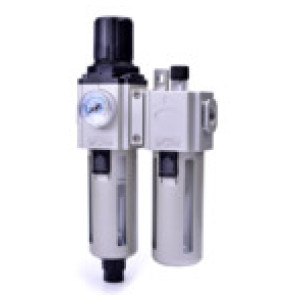

Service unit 2-part »GA«, PC container, Protective cage, 5 µm, Size 400, G3/8, Input pressure max. 10 bar, Control range 1.5-9 bar

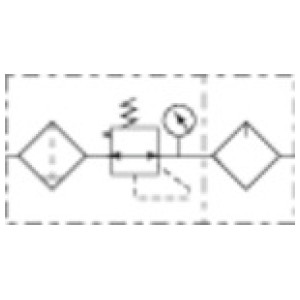

Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 10,17 € x 24 mesecev
- 19,46 € x 12 mesecev
- 38,07 € x 6 mesecev
- 75,30 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Odtok kondenzata | C [mm] | A [mm] | D [mm] | B [mm] | Velikost | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
178492RIE | G 3/8 | Semi-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,10 € | | |
178500RIE | G 1/2 | Fully-automatic | 108.0 | 164.0 | 177.5 | 285.5 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 207,84 € | | |
178494RIE | G 3/8 | Semi-automatic | 108.0 | 164.0 | 177.5 | 285.5 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 182,71 € | | |
178497RIE | G 3/8 | Fully-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 152,10 € | | |
178496RIE | G 1/4 | Fully-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 1550 | Čas dobave: Predvidoma 3 - 5 dni | 152,10 € | | |
178491RIE | G 1/4 | Semi-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 1550 | Čas dobave: Predvidoma 3 - 5 dni | 105,10 € | | |
178493RIE | G 1/2 | Semi-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,10 € | | |
178498RIE | G 1/2 | Fully-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 152,10 € | | |
178499RIE | G 3/8 | Fully-automatic | 108.0 | 164.0 | 177.5 | 285.5 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 207,84 € | | |
178495RIE | G 1/2 | Semi-automatic | 108.0 | 164.0 | 177.5 | 285.5 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 182,71 € | |
Opis
Service unit 2-part »GA«, PC container, Protective cage, 5 µm, Size 400, G3/8, Input pressure max. 10 bar, Control range 1.5-9 bar
Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
Navoj | G 3/8 |
Min. temperaturno območje [°C] | -5 |
Max. temperaturno območje [°C] | 70 |
Max. vhodni tlak [bar] | 10 |
Velikost | 400 |
Ohišje | Die-cast aluminium |
Tesnilo | NBR |
Rang filtra [µm] | 5 |
Vidna kupola | Brass/POM |
Vzmet pokrova motorja | POM |
Min. krmilno območje [bar] | 1.5 |
Max. krmilno območje [bar] | 9 |
Posoda | Polycarbonate container with protective cage |
Pretok [l/min] | 3500 |
Odtok kondenzata | Fully-automatic |

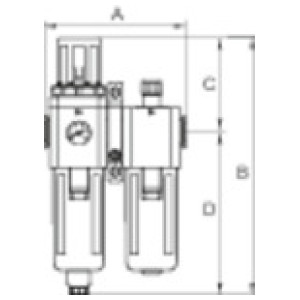

A [mm] | 164.0 |
B [mm] | 285.5 |
C [mm] | 108.0 |
D [mm] | 177.5 |
Serija | GA |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
