Serv. enota 2-delna »GA-mali«5 µm,Vel.200, G1/8, 1.5 - 9 bar
SKU: 178361RIE
EAN: 4047322666329

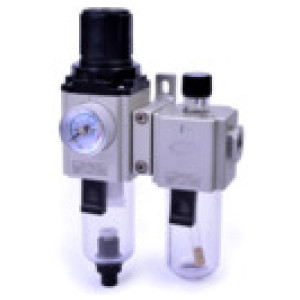

Service unit 2-part »GA-mini«, with PC container, 5 µm, Size 200, G 1/8, Input pressure max. 10 bar, Control range 1.5 - 9 bar

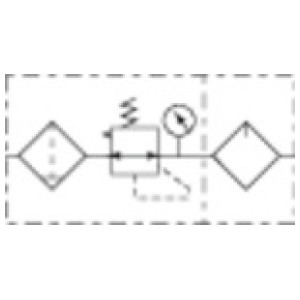

Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 19,40 € x 6 mesecev
- 38,38 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 178362RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 106,02 € |  | |
| 178361RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 106,02 € | |
Opis
Service unit 2-part »GA-mini«, with PC container, 5 µm, Size 200, G 1/8, Input pressure max. 10 bar, Control range 1.5 - 9 bar
Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Min. temperaturno območje [°C] | -5 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 200 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Rang filtra [µm] | 5 |
| Vidna kupola | Brass/POM |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 9 |
| Pretok [l/min] | 900 |
| Odtok kondenzata | Semi-automatic |

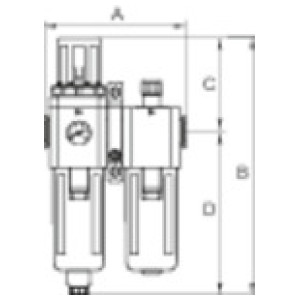

| A [mm] | 108.0 |
| B [mm] | 171.0 |
| C [mm] | 73.0 |
| D [mm] | 98.0 |
| Serija | GA-mini |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
