Serv. enota 2-delna »FUTURA«PC Vel.4,G 3/4, 0.5-16,Pol avto.
SKU: 152358RIE
EAN: 4047322601054
Service unit 2-part »FUTURA« with PC container, Protective cage and pressure gauge, Size 4, G 3/4, Control range 0.5-16 bar, Semi
Two-piece service units with excellent flow rates in modern design.
Lockable diaphragm pressure regulator with secondary ventilation, oil can be filled without interrupting operation.
Čas dobave: Predvidoma 3 - 5 dni
494,32 €
ali od 13,15 € / mesec
Izračunaj obrok
Obrestno financiranje
- 13,15 € x 48 mesecev
- 16,81 € x 36 mesecev
- 24,15 € x 24 mesecev
- 46,23 € x 12 mesecev
- 90,42 € x 6 mesecev
- 178,84 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100221RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 215,21 € |  | |
| 100228RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 244,85 € | | |
| 152379RIE | G 1/2 | Fully-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 152385RIE | G 3/4 | Fully-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | | |
| 139553RIE | G 1/2 | Semi-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 152376RIE | G 3/8 | Fully-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 152346RIE | G 1/4 | Semi-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 100229RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 567,42 € | | |
| 139554RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 152390RIE | G 1 | Fully-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | | |
| 152369RIE | G 3/8 | Fully-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 100227RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 244,85 € | | |
| 152375RIE | G 3/8 | Fully-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 152360RIE | G 1 | Semi-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 100226RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 179,25 € | | |
| 152383RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 152356RIE | G 3/4 | Semi-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 152392RIE | G 1 | Fully-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | | |
| 152374RIE | G 3/8 | Fully-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 152347RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 152359RIE | G 1 | Semi-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 152350RIE | G 3/8 | Semi-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 100223RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 503,74 € | | |
| 152382RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 152371RIE | G 3/8 | Fully-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 152372RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 152344RIE | G 1/4 | Semi-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 152353RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 152352RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 139548RIE | G 3/8 | Semi-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 152373RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 100224RIE | G 1 | Semi-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 503,74 € | | |
| 152361RIE | G 1 | Semi-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 152378RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 152366RIE | G 1/4 | Fully-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 152351RIE | G 3/8 | Semi-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 152363RIE | G 1 | Semi-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 152370RIE | G 3/8 | Fully-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 100230RIE | G 1 | Fully-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 567,42 € | | |
| 152365RIE | G 1/4 | Fully-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 152389RIE | G 1 | Fully-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | | |
| 152358RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 152348RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 152380RIE | G 1/2 | Fully-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 139546RIE | G 3/8 | Semi-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 100219RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 123,93 € | | |
| 100220RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 123,93 € | | |
| 152381RIE | G 1/2 | Fully-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 152367RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 152393RIE | G 1 | Fully-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | | |
| 100225RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 179,25 € | | |
| 139551RIE | G 1/2 | Semi-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 152354RIE | G 3/4 | Semi-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 152357RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 152368RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 139555RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 152377RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 126.0 | 273.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 240,28 € | | |
| 152387RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | | |
| 152384RIE | G 3/4 | Fully-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | | |
| 152355RIE | G 3/4 | Semi-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 152349RIE | G 3/8 | Semi-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 139549RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 139552RIE | G 1/2 | Semi-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 152345RIE | G 1/4 | Semi-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 121,61 € | | |
| 139547RIE | G 3/8 | Semi-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 100222RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 215,21 € | | |
| 152388RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | | |
| 152364RIE | G 1/4 | Fully-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 175,91 € | | |
| 152386RIE | G 3/4 | Fully-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | | |
| 139550RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 126.0 | 257.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 211,18 € | | |
| 152362RIE | G 1 | Semi-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 494,32 € | | |
| 152391RIE | G 1 | Fully-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 556,81 € | |
Opis
Service unit 2-part »FUTURA« with PC container, Protective cage and pressure gauge, Size 4, G 3/4, Control range 0.5-16 bar, Semi
Two-piece service units with excellent flow rates in modern design.
Lockable diaphragm pressure regulator with secondary ventilation, oil can be filled without interrupting operation.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Vidna kupola | PC |
| Pretok [l/min] | 12000 |
| Odtok kondenzata | Semi-automatic |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 1.5 l/min (depending on secondary pressure) |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 16 |
| Zaslon manometra max. [bar] | 25 |
| Posoda | Polycarbonate container with protective cage |

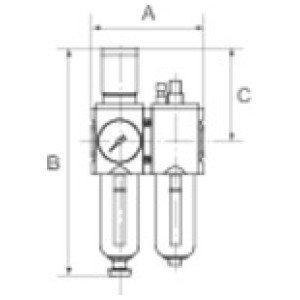

| A [mm] | 170.0 |
| B [mm] | 326.0 |
| C [mm] | 137.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
