Serv. enota 2-delna»FUTURA«Kov.Vel.1, G3/8, 0.1-2, Pol avto.
SKU: 152401RIE
EAN: 4047322601481

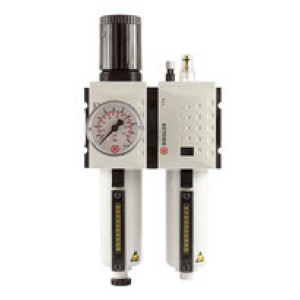

Service unit 2-part »FUTURA« with metal container, Viewing tube and pressure gauge, Size 1, G 3/8, Control range 0.1 - 2 bar, Semi
Two-piece service units with excellent flow rates in modern design.
Lockable diaphragm pressure regulator with secondary ventilation, oil can be filled without interrupting operation.
Čas dobave: Predvidoma 3 - 5 dni
180,38 €
ali od 16,84 € / mesec
Izračunaj obrok
Obrestno financiranje
- 16,84 € x 12 mesecev
- 32,95 € x 6 mesecev
- 65,17 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 139567RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € |  | |
| 139564RIE | G 1/2 | Semi-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152445RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 152435RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152447RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 152422RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152401RIE | G 3/8 | Semi-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 139562RIE | G 1/2 | Semi-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152403RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152397RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152411RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152444RIE | G 3/4 | Fully-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 152453RIE | G 1 | Fully-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 152440RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152409RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 139560RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152433RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 139556RIE | G 3/8 | Semi-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152394RIE | G 1/4 | Semi-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152449RIE | G 1 | Fully-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 152396RIE | G 1/4 | Semi-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152399RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152441RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 139563RIE | G 1/2 | Semi-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152430RIE | G 3/8 | Fully-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152437RIE | G 1/2 | Fully-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152432RIE | G 3/8 | Fully-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152451RIE | G 1 | Fully-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 152405RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152410RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152404RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152417RIE | G 1 | Semi-automatic | 0.5 | 4 | 16 | 25 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152395RIE | G 1/4 | Semi-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152407RIE | G 3/4 | Semi-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152443RIE | G 3/4 | Fully-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 139558RIE | G 3/8 | Semi-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152418RIE | G 1/4 | Fully-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152420RIE | G 1/4 | Fully-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152446RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 152406RIE | G 3/4 | Semi-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152438RIE | G 1/2 | Fully-automatic | 0.2 | 2 | 4 | 6 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152416RIE | G 1 | Semi-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152427RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152413RIE | G 1 | Semi-automatic | 0.1 | 4 | 2 | 2.5 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152414RIE | G 1 | Semi-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152419RIE | G 1/4 | Fully-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 139565RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152425RIE | G 3/8 | Fully-automatic | 0.1 | 1 | 2 | 2.5 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152429RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 139566RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152423RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 16 | 25 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152400RIE | G 3/8 | Semi-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152436RIE | G 1/2 | Fully-automatic | 0.1 | 2 | 1 | 1.6 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152448RIE | G 1 | Fully-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 139559RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152439RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 8 | 10 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152402RIE | G 3/8 | Semi-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152431RIE | G 3/8 | Fully-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152412RIE | G 1 | Semi-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152442RIE | G 3/4 | Fully-automatic | 0.1 | 4 | 1 | 1.6 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 139561RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 16 | 25 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152415RIE | G 1 | Semi-automatic | 0.5 | 4 | 8 | 10 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152426RIE | G 3/8 | Fully-automatic | 0.2 | 1 | 4 | 6 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152421RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 8 | 10 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152450RIE | G 1 | Fully-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | | |
| 139557RIE | G 3/8 | Semi-automatic | 0.1 | 2 | 2 | 2.5 | 110.0 | 126.0 | 261.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 285,22 € | | |
| 152398RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 104.0 | 226.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 180,38 € | | |
| 152434RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 10 | 16 | 110.0 | 126.0 | 277.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 342,77 € | | |
| 152428RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 10 | 16 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152408RIE | G 3/4 | Semi-automatic | 0.2 | 4 | 4 | 6 | 137.0 | 170.0 | 326.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 517,83 € | | |
| 152424RIE | G 3/8 | Fully-automatic | 0.1 | 1 | 1 | 1.6 | 96.0 | 104.0 | 243.0 | 1750 | Čas dobave: Predvidoma 3 - 5 dni | 236,52 € | | |
| 152452RIE | G 1 | Fully-automatic | 0.5 | 4 | 10 | 16 | 137.0 | 170.0 | 343.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 645,86 € | |
Opis
Service unit 2-part »FUTURA« with metal container, Viewing tube and pressure gauge, Size 1, G 3/8, Control range 0.1 - 2 bar, Semi
Two-piece service units with excellent flow rates in modern design.
Lockable diaphragm pressure regulator with secondary ventilation, oil can be filled without interrupting operation.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Vidna kupola | PC |
| Pretok [l/min] | 1750 |
| Odtok kondenzata | Semi-automatic |
| Min. krmilno območje [bar] | 0.1 |
| Max. krmilno območje [bar] | 2 |
| Zaslon manometra max. [bar] | 2.5 |
| Posoda | Metal container with viewing tube |

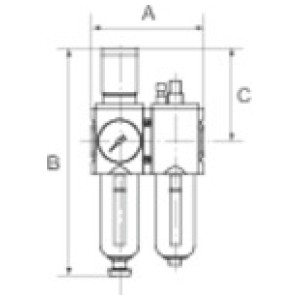

| A [mm] | 104.0 |
| B [mm] | 226.0 |
| C [mm] | 96.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
