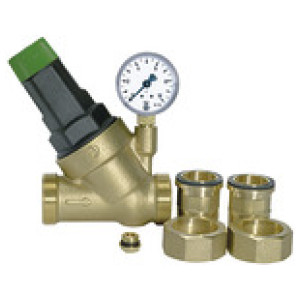

Regulator tlaka »Saxonia«, pitna voda, testirano na DVGW, R 3/4
SKU: 101401RIE
EAN: 4047322011761
Pressure regulator »Saxonia« for potable water, DVGW tested, incl. pressure gauge, R 3/4, Control range 1.5 - 6 bar
Diaphragm pressure regulators with pressure-reduced single-seated valve and built-in strainer.
These pressure regulators, which are independent of inlet pressure, protect domestic water installations against excessive supply pressure. They can also be used for commercial or industrial purposes providing their specification is adequate.
Obrestno financiranje
- 14,41 € x 12 mesecev
- 28,19 € x 6 mesecev
- 55,75 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

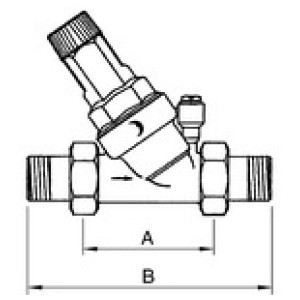

| Šifra | Navoj | Pretok KVS vrednost [m³/h] | DN | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 101401RIE | R 3/4 | 3.4 | 20 | 90.0 | 158.0 | Čas dobave: Predvidoma 3 - 5 dni | 154,11 € |  | |
| 101403RIE | R 1 1/4 | 8.6 | 32 | 130.0 | 228.0 | Čas dobave: Predvidoma 3 - 5 dni | 283,22 € | | |
| 101402RIE | R 1 | 5.3 | 25 | 100.0 | 184.0 | Čas dobave: Predvidoma 3 - 5 dni | 173,36 € | |
Opis
Pressure regulator »Saxonia« for potable water, DVGW tested, incl. pressure gauge, R 3/4, Control range 1.5 - 6 bar
Diaphragm pressure regulators with pressure-reduced single-seated valve and built-in strainer.
These pressure regulators, which are independent of inlet pressure, protect domestic water installations against excessive supply pressure. They can also be used for commercial or industrial purposes providing their specification is adequate.
Tehnični podatki in specifikacije
| Navoj | R 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Max. delovna temperatura [°C] | 30 |
| Ohišje | Brass |
| Tesnilo | NBR |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 6 |
| A [mm] | 90.0 |
| B [mm] | 158.0 |
| Srednje | Drinking water |
| Vzmet pokrova motorja | Plastic |
| Cedilna košarica | Plastic, with control dial for back pressure |
| Pretok KVS vrednost [m³/h] | 3.4 |
| DN | 20 |
| Serija | Saxonia |
