Regulator tlaka, pitna voda testirano na DVGW, R 1 1/4, 1.5-6 bar
SKU: 101363RIE
EAN: 4047322011440

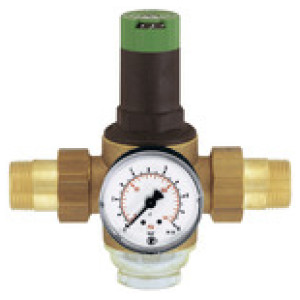

Pressure regulator for potable water, DVGW tested, incl. pressure gauge, Transparent sieve cup, R 1 1/4, Control range 1.5 - 6 bar
Diaphragm pressure regulators with pressure-reduced single-seated valve and built-in strainer.
These pressure regulators, which are independent of inlet pressure, protect domestic water installations against
excessive supply pressure. They can also be used for commercial or industrial purposes providing their
specification is adequate.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 13,74 € x 24 mesecev
- 26,29 € x 12 mesecev
- 51,44 € x 6 mesecev
- 101,73 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Pretok KVS vrednost [m³/h] | D [mm] | C [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
101364RIE | R 1 1/2 | 12.6 | 126.0 | 173.0 | 225.0 | 299.0 | Čas dobave: Predvidoma 3 - 5 dni | 494,80 € | | |
101363RIE | R 1 1/4 | 9.1 | 64.0 | 111.0 | 200.0 | 175.0 | Čas dobave: Predvidoma 3 - 5 dni | 280,59 € | | |
101365RIE | R 2 | 12 | 126.0 | 173.0 | 255.0 | 299.0 | Čas dobave: Predvidoma 3 - 5 dni | 592,43 € | | |
101361RIE | R 3/4 | 3.1 | 58.0 | 89.0 | 160.0 | 147.0 | Čas dobave: Predvidoma 3 - 5 dni | 170,30 € | | |
101360RIE | R 1/2 | 2.4 | 58.0 | 89.0 | 140.0 | 147.0 | Čas dobave: Predvidoma 3 - 5 dni | 156,23 € | | |
101362RIE | R 1 | 7.6 | 64.0 | 111.0 | 180.0 | 175.0 | Čas dobave: Predvidoma 3 - 5 dni | 191,65 € | |
Opis
Pressure regulator for potable water, DVGW tested, incl. pressure gauge, Transparent sieve cup, R 1 1/4, Control range 1.5 - 6 bar
Diaphragm pressure regulators with pressure-reduced single-seated valve and built-in strainer.
These pressure regulators, which are independent of inlet pressure, protect domestic water installations against
excessive supply pressure. They can also be used for commercial or industrial purposes providing their
specification is adequate.
Tehnični podatki in specifikacije
Navoj | R 1 1/4 |
Opomba | With brass sieve cup the maximum inlet pressure increases to 25 bar |
Max. vhodni tlak [bar] | 16 |
Max. delovna temperatura [°C] | 40 |
Ohišje | Brass |
Tesnilo | NBR |
Min. krmilno območje [bar] | 1.5 |
Max. krmilno območje [bar] | 6 |
A [mm] | 200.0 |
B [mm] | 175.0 |
C [mm] | 111.0 |
D [mm] | 64.0 |
Srednje | Drinking water, nitrogen, compressed air, neutral liquids |
Vzmet pokrova motorja | Plastic |
Cedilna košarica | Transparent strainer cup |
Pretok KVS vrednost [m³/h] | 9.1 |
