Regulator tlaka, pitna voda, DVGW ni potrebna., R3/4, 1.5-12bar
SKU: 101367RIE
EAN: 4047322011549

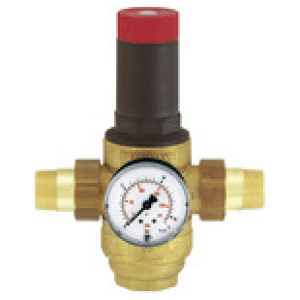

Pressure regulator for potable water, DVGW not necessary, incl. pressure gauge, Brass sieve cup, R 3/4, Control range 1.5 - 12 bar
Diaphragm pressure regulators with pressure-reduced single-seated valve and built-in strainer.
These pressure regulators, which are independent of inlet pressure, protect domestic water installations against
excessive supply pressure. They can also be used for commercial or industrial purposes providing their
specification is adequate.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 12,07 € x 24 mesecev
- 23,11 € x 12 mesecev
- 45,21 € x 6 mesecev
- 89,42 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

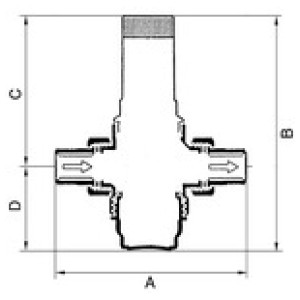

Šifra | Navoj | Min. krmilno območje [bar] | Pretok KVS vrednost [m³/h] | Max. krmilno območje [bar] | D [mm] | C [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
101367RIE | R 3/4 | 1.5 | 3.1 | 12 | 56.0 | 96.0 | 152.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 246,50 € | | |
101369RIE | R 1 1/4 | 1.5 | 9.1 | 12 | 77.0 | 140.0 | 217.0 | 200.0 | Čas dobave: Predvidoma 3 - 5 dni | 424,99 € | | |
101373RIE | R 3/4 | 0.5 | 3.1 | 2 | 56.0 | 148.0 | 204.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 407,16 € | | |
101366RIE | R 1/2 | 1.5 | 2.4 | 12 | 56.0 | 96.0 | 152.0 | 140.0 | Čas dobave: Predvidoma 3 - 5 dni | 220,84 € | | |
101371RIE | R 2 | 1.5 | 12 | 12 | 113.0 | 172.0 | 285.0 | 255.0 | Čas dobave: Predvidoma 3 - 5 dni | 832,59 € | | |
101372RIE | R 1/2 | 0.5 | 2.4 | 2 | 56.0 | 148.0 | 204.0 | 140.0 | Čas dobave: Predvidoma 3 - 5 dni | 368,50 € | | |
101370RIE | R 1 1/2 | 1.5 | 12.6 | 12 | 113.0 | 172.0 | 285.0 | 225.0 | Čas dobave: Predvidoma 3 - 5 dni | 779,08 € | | |
101374RIE | R 1 | 0.5 | 7.6 | 2 | 77.0 | 185.0 | 262.0 | 180.0 | Čas dobave: Predvidoma 3 - 5 dni | 476,06 € | | |
101368RIE | R 1 | 1.5 | 7.6 | 12 | 77.0 | 140.0 | 217.0 | 180.0 | Čas dobave: Predvidoma 3 - 5 dni | 295,98 € | |
Opis
Pressure regulator for potable water, DVGW not necessary, incl. pressure gauge, Brass sieve cup, R 3/4, Control range 1.5 - 12 bar
Diaphragm pressure regulators with pressure-reduced single-seated valve and built-in strainer.
These pressure regulators, which are independent of inlet pressure, protect domestic water installations against
excessive supply pressure. They can also be used for commercial or industrial purposes providing their
specification is adequate.
Tehnični podatki in specifikacije
Navoj | R 3/4 |
Max. vhodni tlak [bar] | 25 |
Max. delovna temperatura [°C] | 70 |
Ohišje | Brass |
Tesnilo | NBR |
Min. krmilno območje [bar] | 1.5 |
Max. krmilno območje [bar] | 12 |
A [mm] | 160.0 |
B [mm] | 152.0 |
C [mm] | 96.0 |
D [mm] | 56.0 |
Srednje | Drinking water, nitrogen, compressed air, neutral liquids |
Vzmet pokrova motorja | Plastic |
Cedilna košarica | Brass strainer cup |
Pretok KVS vrednost [m³/h] | 3.1 |
