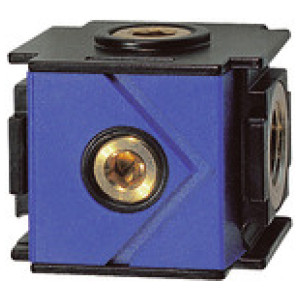

Razdelilnik »variobloc«, Velikost 2, G 1/2, with 4 Izhodi
SKU: 100724RIE
EAN: 4047322170055

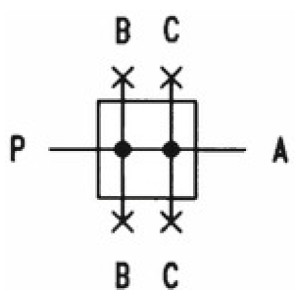

Distributor »variobloc«, Size 2, G 1/2, with 4 outlets: Top / bottom G 3/8 / G 1/2 and front / back G 1/4
For removing unlubricated air when the manifold is flanged on upstream of the oil-mist lubricator.
An integrated non-return valve prevents oil inflow from the oil-mist lubricator or the line.
Obrestno financiranje
- 15,74 € x 6 mesecev
- 31,13 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok zgoraj/spodaj | Velikost | B [mm] | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 100724RIE | G 1/2 | G 3/8 / G 1/2 | 2 | 56.0 | 70.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 85,58 € |  | |
| 100723RIE | G 3/8 | G 3/8 | 1 | 44.0 | 48.0 | 900 | Čas dobave: Predvidoma 3 - 5 dni | 47,47 € | | |
| 100725RIE | G 3/4 | G 3/8 / G 1/2 | 2 | 56.0 | 70.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 85,58 € | | |
| 100722RIE | G 1/4 | G 3/8 | 1 | 44.0 | 48.0 | 900 | Čas dobave: Predvidoma 3 - 5 dni | 52,00 € | | |
| 100726RIE | G 1 | G 3/8 / G 1/2 | 2 | 56.0 | 124.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | 138,09 € | |
Opis
Distributor »variobloc«, Size 2, G 1/2, with 4 outlets: Top / bottom G 3/8 / G 1/2 and front / back G 1/4
For removing unlubricated air when the manifold is flanged on upstream of the oil-mist lubricator.
An integrated non-return valve prevents oil inflow from the oil-mist lubricator or the line.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Velikost | 2 |
| Število vtičnic | 4 (all sealed on delivery) |
| Pretok [l/min] | 4000 |
| Odtok zgoraj/spodaj | G 3/8 / G 1/2 |
| Odtok spredaj/zadaj | G 1/4 |

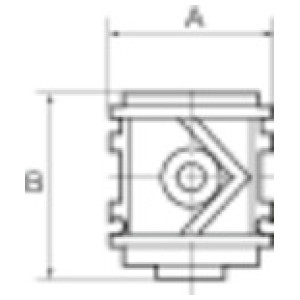

| A [mm] | 70.0 |
| B [mm] | 56.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
