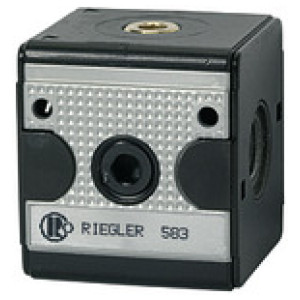

Razdelilnik »multifix«Široka izvedbaVel. 3, G 3/4, 4 Izhodi
SKU: 100610RIE
EAN: 4047322166416
Distributor »multifix«, Wide design, Size 3, G 3/4, with 4 outlets: 2 x G 1/4 and 2 x G 1/2, Input pressure max. 16 bar
Wide or narrow, four-way manifolds.
Čas dobave: Predvidoma 3 - 5 dni
48,58 €
| Šifra | Navoj | Ohišje | Odtok | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133132RIE | G 1 | Die-cast aluminium | 2 x 1/4, 1 x 3/4, 1 x 1 | 4 | 50.0 | 85.0 | 108.0 | 18000 | Čas dobave: Predvidoma 3 - 5 dni | 138,49 € |  | |
| 133131RIE | G 3/4 | Die-cast aluminium | 2 x 1/4, 1 x 3/4, 1 x 1 | 4 | 50.0 | 85.0 | 108.0 | 18000 | Čas dobave: Predvidoma 3 - 5 dni | 138,49 € | | |
| 100607RIE | G 1/4 | Die-cast zinc | 4 x 1/4 | 1 | 26.0 | 47.8 | 52.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 38,06 € | | |
| 100609RIE | G 1/2 | Die-cast zinc | 2 x 1/4, 2 x 1/2 | 3 | 33.5 | 68.8 | 67.0 | 11000 | Čas dobave: Predvidoma 3 - 5 dni | 48,58 € | | |
| 100610RIE | G 3/4 | Die-cast zinc | 2 x 1/4, 2 x 1/2 | 3 | 33.5 | 68.8 | 67.0 | 11000 | Čas dobave: Predvidoma 3 - 5 dni | 48,58 € | | |
| 100608RIE | G 3/8 | Die-cast zinc | 4 x 1/4 | 1 | 26.0 | 47.8 | 52.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 38,06 € | |
Opis
Distributor »multifix«, Wide design, Size 3, G 3/4, with 4 outlets: 2 x G 1/4 and 2 x G 1/2, Input pressure max. 16 bar
Wide or narrow, four-way manifolds.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 3 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 11000 |
| Odtok | 2 x 1/4, 2 x 1/2 |
| Ohišje | Die-cast zinc |

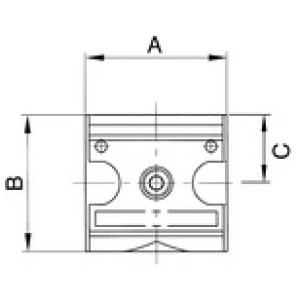

| A [mm] | 68.8 |
| B [mm] | 67.0 |
| C [mm] | 33.5 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
