* slike so simbolične

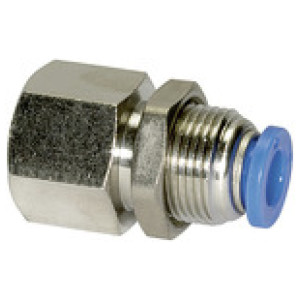

Ravni vtični pregradni vgradnjo Blue serija, M14x1, Rc 1/4 i.
SKU: 109216RIE
EAN: 4047322196956
Straight push-in bulkhead fitting »Blue Series«, M14x1, Rc 1/4 i., for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
5,88 €
| Šifra | Navoj | Navoj za pritrditev plošče | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109218RIE | Rc 1/4 | M20x1.0 | 10 | 24 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,31 € |  | |
| 109217RIE | Rc 1/4 | M16x1.0 | 8 | 19 | 35.1 | Čas dobave: Predvidoma 3 - 5 dni | 7,53 € | | |
| 109213RIE | Rc 1/8 | M12x1.0 | 4 | 14 | 23.8 | Čas dobave: Predvidoma 3 - 5 dni | 3,53 € | | |
| 109216RIE | Rc 1/4 | M14x1.0 | 6 | 17 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,88 € | | |
| 109220RIE | Rc 3/8 | M20x1.0 | 10 | 24 | 37.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,75 € | | |
| 109222RIE | Rc 1/2 | M22x1.0 | 12 | 24 | 41.1 | Čas dobave: Predvidoma 3 - 5 dni | 12,53 € | | |
| 109215RIE | Rc 1/8 | M16x1.0 | 8 | 19 | 32.1 | Čas dobave: Predvidoma 3 - 5 dni | 6,55 € | | |
| 109221RIE | Rc 3/8 | M22x1.0 | 12 | 24 | 39.1 | Čas dobave: Predvidoma 3 - 5 dni | 11,04 € | | |
| 109214RIE | Rc 1/8 | M14x1.0 | 6 | 17 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,09 € | | |
| 109219RIE | Rc 1/4 | M22x1.0 | 12 | 24 | 38.1 | Čas dobave: Predvidoma 3 - 5 dni | 11,04 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | Rc 1/4 |
| Za cevi O.D. [mm] | 6 |

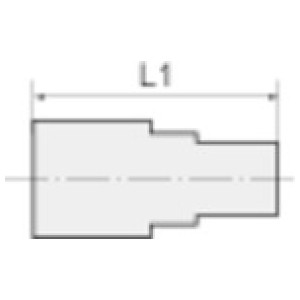

| L1 [mm] | 30.0 |
| a/f [mm] | 17 |
| Navoj za pritrditev plošče | M14x1.0 |
| Material | Plastic and nickel-plated brass |
